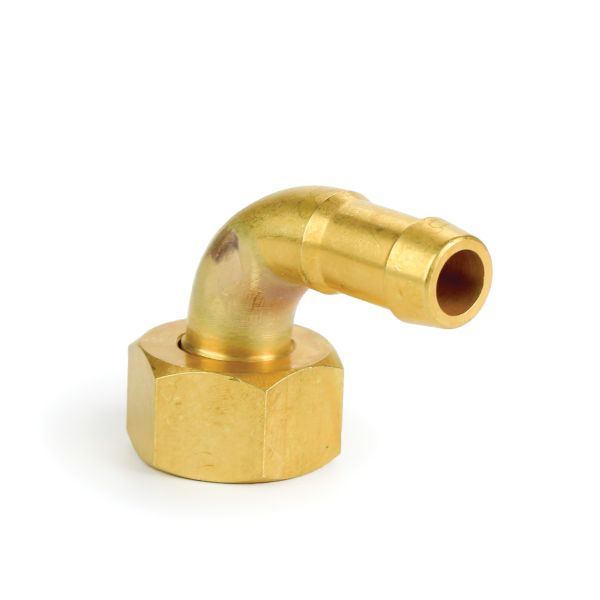

Elbow 90° Swept F Threaded BSPP
Useful Information
Technical Specification
- Material: Brass
- Thread Type: BSPP (British Standard Pipe Parallel)
- Thread Gender: Female swivel
- Sealing Method: 60° coned seat
- Configuration: Swept 90° elbow with hose tail
- Sizes Available: 1/8" x 6mm to 1/2" x 12mm
- Compatible Media: Compressed air, water, oil, and general fluids
Description
Designed for smooth, directional flow, this brass swept elbow fitting connects flexible hose to male BSPP-threaded ports at a 90° angle. The swept design helps reduce turbulence and pressure drop, making it ideal for systems where consistent flow is critical. The female swivel thread and 60° coned seat provide a secure, leak-resistant metal-to-metal seal without the need for additional sealing materials. Built from corrosion-resistant brass, this fitting is suitable for use in compressed air, water, and oil transport applications.
Key Features & Benefits
- Swept elbow design improves flow efficiency and reduces pressure loss
- BSPP female swivel thread allows easy installation and alignment
- 60° coned seat provides a secure, metal-to-metal seal
- Manufactured from high-quality brass for durability and corrosion resistance
- Suitable for air, water, oil, and general-purpose fluid transfer
- Single barbed hose tail ensures a reliable grip with memory-retaining hoses
- Complies with ISO 228 Class A for thread precision and compatibility
- Please refer to the PVC Braided Hose section for more information on maximum pressure and temperature ratings
