Cross 90°
Useful Information
Technical Specification
- Material: Brass
- Configuration: Four-way hose connection, 90° cross
- Hose Tail: Barbed ends for secure hose fit
- Size Range: ¼″ (6 mm) to ½″ (12 mm) hose ID
- Suitable Media: Compressed air, water, oil, and general fluids
- Operating pressure/temperature: Dependent on hose rating (please see the PVC Braided Hose section for more information)
Description

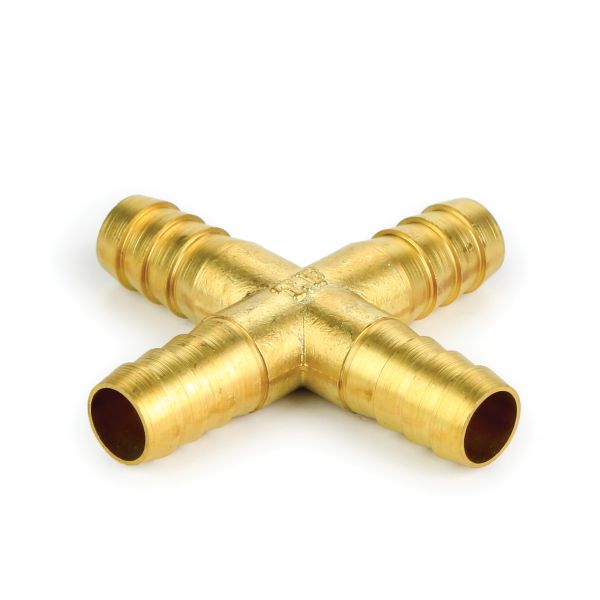

This brass cross fitting offers a compact solution for distributing flow between four hose lines at 90° angles. Designed with barbed hose tails for a secure grip, it enables seamless integration into systems where equal branching is required. Its robust brass construction ensures durability and resistance to corrosion in demanding fluid or pneumatic applications. Commonly used in air lines, low-pressure water systems, and light industrial setups, it provides flexibility and reliability in multi-hose configurations.
Key Features & Benefits
- Four-way 90° connection is ideal for equal fluid distribution
- Barbed hose tails allow for a firm, leak-resistant hose attachment
- Solid brass build ensures corrosion-resistance and built to last
- Compact form is suitable for confined spaces or complex layouts
- Multiple sizes available, supports hose IDs from 6 mm to 12 mm
- Versatile use suitable for air, oil, water, and compatible fluids
- Quick installation with no threading or sealants required
| Product Code | Hose ID (mm) | Hose ID (inch) | A (mm) | ID (mm) | OD (mm) |
| 375588 | 6 | 1/4 | 55 | 4.5 | 7 |
| 375589 | 8 | 5/16 | 55 | 5.9 | 9 |
| 375590 | 10 | 3/8 | 63.2 | 7.7 | 10.2 |
| 375591 | 12 | 1/2 | 65.3 | 9.6 | 13.5 |
