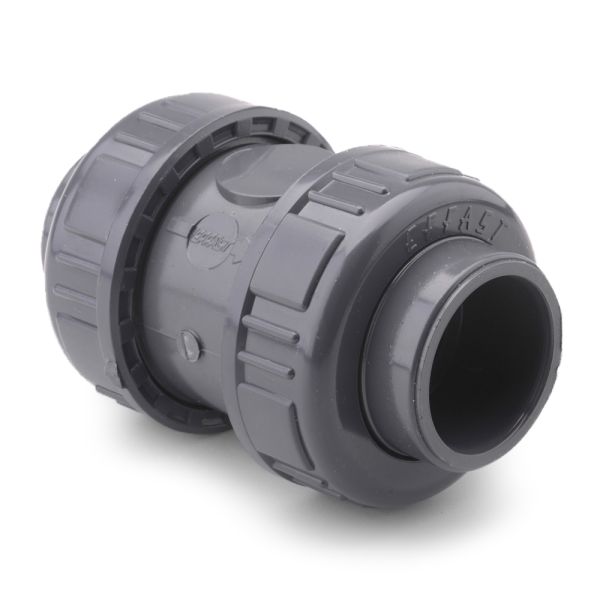

PVCu Metric Check Valve EPDM
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Unplasticised Polyvinyl Chloride)
- Seal Material: EPDM
- Spring Material: Stainless Steel
- Connection Type: Plain x Plain Union Ends (solvent weld)
- Size Range: 16mm – 110mm
- Pressure Rating: 16 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This PVCu check valve features EPDM seals and stainless steel springs for reliable non-return flow control in pressurised systems. Fitted with plain union ends for solvent-weld installation, it prevents backflow and is ideal for vertical or horizontal installation in a variety of fluid handling applications.
Key Features & Benefits
- Prevents backflow in piping systems
- Supplied with EPDM seals and stainless steel springs
- Plain union ends for secure solvent-weld connections
- Suitable for vertical and horizontal installation
| SKU | Supplier Code | Size (mm) |
| 356249 | RBI30I0160 | 16 |
| 356250 | RBI30I0200 | 20 |
| 356251 | RBI30I0250 | 25 |
| 356252 | RBI30I0320 | 32 |
| 356253 | RBI30I0400 | 40 |
| 356254 | RBI30I0500 | 50 |
| 356255 | RBI30I0630 | 63 |
| 356256 | RBI30I0750 | 75 |
| 356257 | RBI30I0900 | 90 |
| 359974 | RBI30I1100 | 110 |
