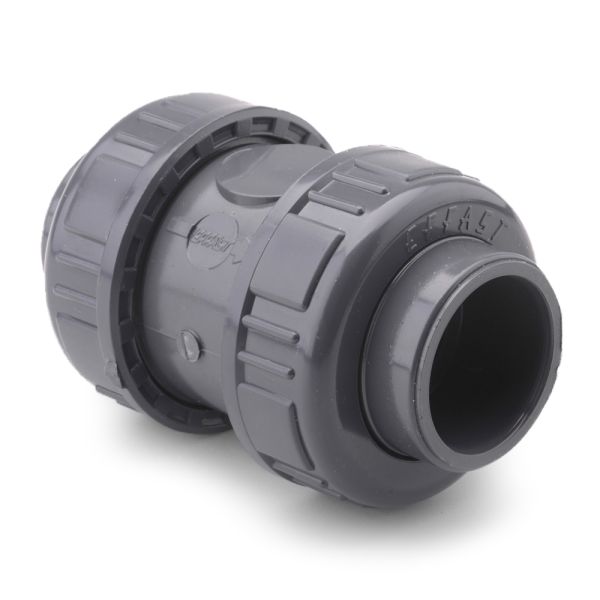

PVCu Metric Air Release Valve
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Unplasticised Polyvinyl Chloride)
- Seal Material: EPDM
- Connection Type: Plain x Plain (solvent weld)
- Size Range: 20mm – 110mm
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This air release valve is engineered to automatically discharge trapped air from PVC pipe systems, helping maintain optimal water flow and system efficiency. Designed with plain ends for solvent-weld installation, it is fitted with EPDM seals for reliable performance in pressurised water and fluid handling systems.
Key Features & Benefits
- Releases trapped air to optimise pipeline flow
- Prevents air blockages and pressure imbalance
- Plain ends for solvent-weld connections
- Fitted with durable EPDM seals
| SKU | Supplier Code | Nominal Size (inch) | L (mm) | Z (mm) | H (mm) | Weight (g) |
| 356311 | RBA33A0200 | 1/2 | 17 | 46 | 78 | 110 |
| 356312 | RBA33A0250 | 3/4 | 20 | 52 | 90 | 180 |
| 356313 | RBA33A0320 | 1 | 23 | 60 | 104 | 250 |
| 356314 | RBA33A0400 | 1 1/4 | 27 | 68 | 120 | 380 |
| 356315 | RBA33A0500 | 1 1/2 | 31 | 78 | 140 | 600 |
| 356316 | RBA33A0630 | 2 | 38 | 93 | 169 | 1000 |
| 359771 | RBA33A0750 | 2 1/2 | 44 | 139 | 227 | 2800 |
| 356317 | RBA33A0900 | 3 | 51 | 139 | 242 | 3000 |
| 359986 | RBA33A1100 | 4 | 61 | 160 | 282 | 4500 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
