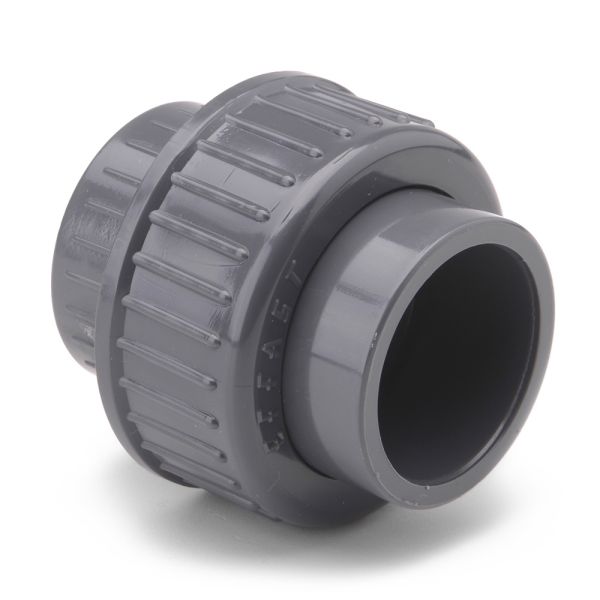

PVCu Metric Union Plain
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Unplasticised Polyvinyl Chloride)
- Connection Type: Plain/Plain Union
- Size Range: 16mm – 110mm
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
Engineered for ease of disassembly, this PVCu plain union fitting securely connects two sections of metric PVC pipe of equal diameter. Ideal for applications requiring future maintenance or reconfiguration, it delivers both strength and flexibility within fluid handling systems.
Key Features & Benefits
- Enables easy separation of connected pipework
- Durable and corrosion-resistant PVCu construction
- Simple solvent-weld installation
- Reusable design for versatile pipework systems
- Compatible with metric PVC piping from 16mm to 110mm
| SKU | Supplier Code | Nominal Size (mm) | L (mm) | Z1 (mm) | Z2 (mm) | F (Inch) | E (mm) |
| 356535 | RFIBOI0160 | 16 | 14 | 3 | 10 | 3/4 | 34 |
| 356536 | RFIBOI0200 | 20 | 16 | 3 | 10 | 1 | 42 |
| 356537 | RFIBOI0250 | 25 | 19 | 3 | 10 | 1 1/4 | 52 |
| 356538 | RFIBOI0320 | 32 | 22 | 3 | 10 | 1 1/2 | 59 |
| 356539 | RFIBOI0400 | 40 | 26 | 3 | 12 | 2 | 72 |
| 356540 | RFIBOI0500 | 50 | 31 | 3 | 14 | 2 1/4 | 79 |
| 356541 | RFIBOI0630 | 63 | 38 | 3 | 18 | 2 3/4 | 96 |
| 356542 | RFIBOI0750 | 75 | 44 | 3 | 18 | 3 1/2 | 119 |
| 356543 | RFIBOI0900 | 90 | 51 | 5 | 18 | 4 | 134 |
| 359897 | RFIBOI1100 | 110 | 61 | 5 | 18 | 5 | 163 |
