PVCu Metric Tee 90° Plain x Thread F

Loading...

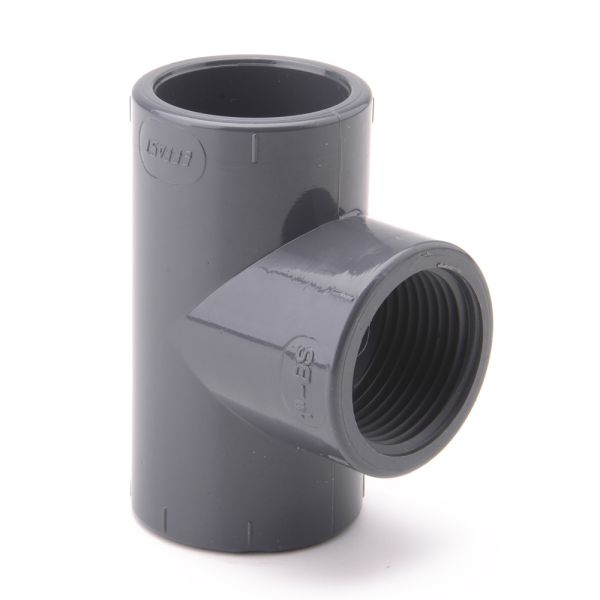

main product photo
More Info
Useful Information

Technical Specification

  • Manufacturer: Effast
  • Material: PVCu (Unplasticised Polyvinyl Chloride)
  • Connection Type: Plain x Plain x Female BSP Thread
  • Size Range: 16mm x 3/8″ – 110mm x 4″
  • Pressure Rating: 15 bar at 20°C
  • Operating Temperature: 5°C to +60°C

Description

This 90° tee fitting enables connection between two plain-end PVC pipes and a BSP male-threaded fitting on the branch outlet. Designed for branching off a pressurised system, it combines solvent-weld and threaded connections for secure and reliable integration.

Key Features & Benefits

  • Facilitates 90° branch connection to a BSP male thread
  • Plain ends bond securely using PVC solvent cement
  • Ideal for mixed jointing systems and threaded equipment
  • Manufactured from strong, chemical-resistant PVCu



PVC Tee 90 Plain x Thread Diagram

SKU Supplier Code Nominal Size (mm x Inch) L1 (mm) L2 (mm) Z1 (mm) Z2 (mm) E (mm)
356836 RFPGOP016A 16 x 3/8 14 11 9 12 23
356837 RFPGOP020B 20 x 1/2 16 15 11 12 28
356838 RFPGOP025C 25 x 3/4 19 16 14 17 34
356839 RFPGOP032D 32 x 1 22 19 17 20 42
356840 RFPGOP040E 40 x 1 1/4 26 21 21 26 51
356841 RFPGOP050F 50 x 1 1/2 31 21 26 36 61
356842 RFPGOP063G 63 x 2 38 26 33 45 75
356843 RFPGOP075H 75 2 1/2 44 30 39 53 89
356844 RFPGOP090I 90 x 3 51 33 47 65 106
356845 RFPGOP110L 110 x 4 61 39 57 79 129



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
357201 PVCu Tee 90 Plain x Threaded 16mm x 3/8" £8.96 80%
You Pay:  £1.77
357202 PVCu Tee 90 Plain x Threaded 20mm x 1/2" £12.85 80%
You Pay:  £2.54
357203 PVCu Tee 90 Plain x Threaded 25mm x 3/4" £14.12 80%
You Pay:  £2.80
357204 PVCu Tee 90 Plain x Threaded 32mm x 1" £15.74 80%
You Pay:  £3.12
357205 PVCu Tee 90 Plain x Threaded 40mm x 1 1/4" £29.62 80%
You Pay:  £5.86
357206 PVCu Tee 90 Plain x Threaded 50mm x 1 1/2" £31.21 80%
You Pay:  £6.18
357207 PVCu Tee 90 Plain x Threaded 63mm x 2" £48.64 80%
You Pay:  £9.63
357208 PVCu Tee 90 Plain x Threaded 75mm x 2 1/2" £86.04 80%
You Pay:  £17.04
357209 PVCu Tee 90 Plain x Threaded 90mm x 3" £90.97 80%
You Pay:  £18.01
357210 PVCu Tee 90 Plain x Threaded 110mm x 4" £136.18 80%
You Pay:  £26.96
