PVCu Metric Tee 90° Plain

Loading...
main product photo
More Info
Useful Information

Technical Specification

  • Manufacturer: Effast
  • Material: PVCu (Polyvinyl Chloride Unplasticised)
  • Fitting Type: Tee 90°
  • Connection Type: Plain (solvent weld)
  • Pressure Rating: 15 bar at 20°C
  • Operating Temperature: 5°C to +60°C
  • Size Range: 16mm to 315mm

Description

This 90° plain tee fitting is designed to connect three lengths of PVCu pipe of the same diameter, forming a T-shaped junction within a pressure system. Ideal for distributing or diverting flow, it is suitable for solvent weld installations and offers a reliable, leak-resistant solution for industrial, irrigation, and water handling applications.

Key Features & Benefits

  • Connects three same-diameter PVC pipes at 90°
  • Forms a T-junction for flow distribution or diversion
  • Plain ends for solvent weld installation
  • Strong, corrosion- and chemical-resistant PVCu construction
  • Suitable for use in metric pressure pipe systems

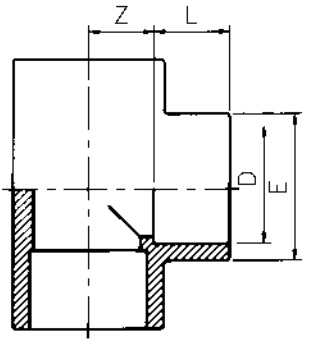

PVC Tee 90 Plain Diagram

SKU Supplier Code Nominal Size (mm) L (mm) Z (mm) E (mm)
357184 RFITII0160 16 14 9 23
357185 RFITII0200 20 16 11 27
357186 RFITII0250 25 19 14 33
357187 RFITII0320 32 22 17 41
357188 RFITII0400 40 26 23 50
357189 RFITII0500 50 31 28 61
357190 RFITII0630 63 38 34 75
357191 RFITII0750 75 44 40 89
357192 RFITII0900 90 51 48 106
357193 RFITII1100 110 61 58 129
357194 RFITII1250 125 69 66 145
357195 RFITII1400 140 76 72 164
357196 RFITII1600 160 86 81 188
357197 RFITII2000 200 106 102 232
357198 RFITII2250 225 119 115 258
357199 RFITII2500 250 131 188 287
357200 RFITII3150 315 164 236 359



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
357184 PVCu Tee 90 Plain 16mm £3.82 80%
You Pay:  £0.76
357185 PVCu Tee 90 Plain 20mm £4.84 80%
You Pay:  £0.96
357186 PVCu Tee 90 Plain 25mm £5.81 80%
You Pay:  £1.15
357187 PVCu Tee 90 Plain 32mm £7.88 80%
You Pay:  £1.56
357188 PVCu Tee 90 Plain 40mm £11.12 80%
You Pay:  £2.20
357189 PVCu Tee 90 Plain 50mm £17.57 80%
You Pay:  £3.48
357190 PVCu Tee 90 Plain 63mm £26.37 80%
You Pay:  £5.22
357191 PVCu Tee 90 Plain 75mm £55.38 80%
You Pay:  £10.97
357192 PVCu Tee 90 Plain 90mm £76.18 80%
You Pay:  £15.08
357193 PVCu Tee 90 Plain 110mm £116.69 80%
You Pay:  £23.10
357194 PVCu Tee 90 Plain 125mm £238.46 80%
You Pay:  £47.22
357195 PVCu Tee 90 Plain 140mm £365.13 80%
You Pay:  £72.30
357196 PVCu Tee 90 Plain 160mm £400.27 80%
You Pay:  £79.25
357197 PVCu Tee 90 Plain 200mm £837.46 80%
You Pay:  £165.82
357198 PVCu Tee 90 Plain 225mm £908.41 80%
You Pay:  £179.87
357199 PVCu Tee 90 Plain 250mm £1,789.00 80%
You Pay:  £354.22
357200 PVCu Tee 90 Plain 315mm £3,740.16 80%
You Pay:  £740.55
