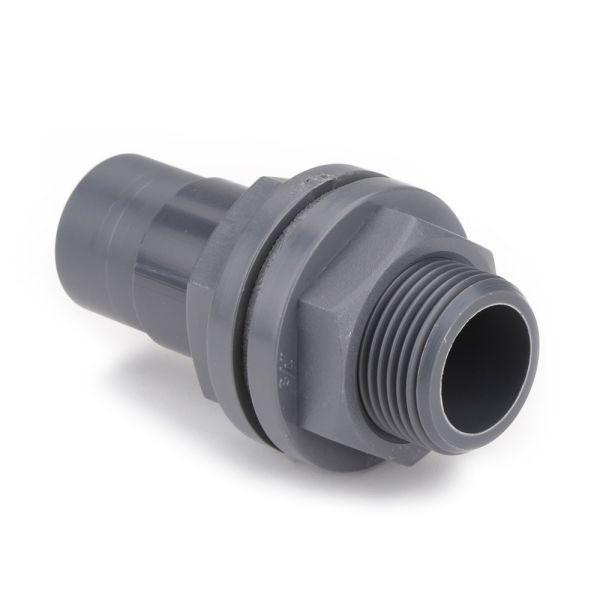

PVCu Metric Tank Connector Plain x Thread M
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Unplasticised Polyvinyl Chloride)
- Connection Type: Plain (solvent weld) x Male BSP Thread
- Size Range: 1/2″ – 4″
- Supplied With: 2 x Nuts, 1 x Gasket
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
Description
This tank connector fitting, also referred to as a bulkhead, allows secure passage of fluid through the wall of a tank or container. Featuring a plain socket for solvent-weld pipe and a BSP male thread, it is supplied with two threaded nuts and a gasket to ensure a watertight seal.
Key Features & Benefits
- Provides a sealed connection through the tank walls
- Plain end for solvent-weld bonding to PVC pipe
- BSP male thread suitable for external fittings
- Includes 2 x threaded nuts and 1 x sealing gasket
- Commonly referred to as a bulkhead fitting
| SKU | Supplier Code | Size (mm x ") |
| 359909 | RFITCI0200 | 20 x 1/2 |
| 359910 | RFITCI0250 | 25 x 3/4 |
| 359911 | RFITCI0320 | 32 x 1 |
| 359912 | RFITCI0400 | 40 x 1 1/4 |
| 359913 | RFITCI0500 | 50 x 1 1/2 |
| 359914 | RFITCI0630 | 63 x 2 |
| 359915 | RFITCI0900 | 90 x 3 |
| 359916 | RFITCI1100 | 110 x 4 |
