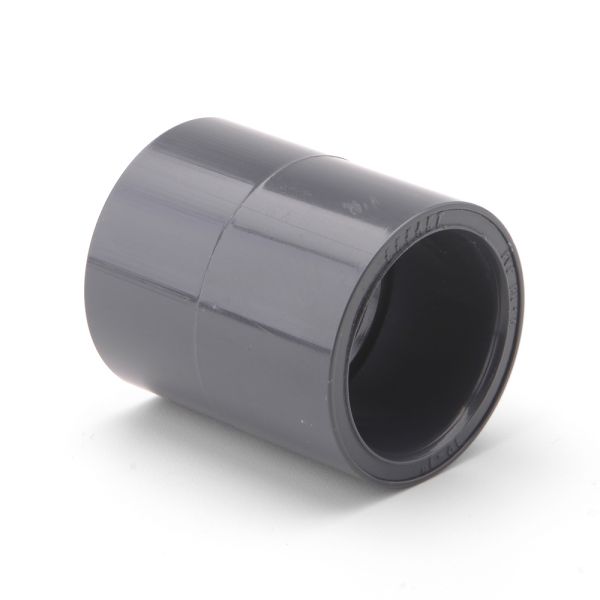

PVCu Metric Socket Plain

Skip to the beginning of the images gallery

Useful Information

Effast plain PVC socket fittings are available in sizes 16mm to 315mm.

This fitting is used to join two lengths of PVC pipe, of the same diameter.

Manufacturer	Effast
Material	PVCu - polyvinyl chloride unplasticised
Pressure Rating	15 bar at 20°C
Operating Temperature	5°C to +60°C

PVC Socket Plain Diagram

Product Code	Nominal Size (mm)	L (mm)	Z (mm)	E (mm)
356900	16	14	3	23
356901	20	16	3	27
356902	25	19	3	33
356903	32	22	3	41
356904	40	26	3	50
356905	50	31	3	61
356906	63	38	3	75
356907	75	44	4	88
356908	90	51	5	106
356909	110	61	6	129
356910	125	69	7	145
356911	140	76	8	161
356912	160	86	8	182
356913	200	106	10	227
356914	225	119	11	258
356915	250	131	11	272
356916	315	164	12	355

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

All text and product images are the intellectual property and copyright of Pipestock Limited

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
356900	PVCu Socket Plain 16mm	£2.79	78%	£0.61
356901	PVCu Socket Plain 20mm	£2.96	78%	£0.65
356902	PVCu Socket Plain 25mm	£3.36	78%	£0.74
356903	PVCu Socket Plain 32mm	£3.72	78%	£0.82
356904	PVCu Socket Plain 40mm	£5.87	78%	£1.29
356905	PVCu Socket Plain 50mm	£7.32	78%	£1.61
356906	PVCu Socket Plain 63mm	£10.54	78%	£2.32
356907	PVCu Socket Plain 75mm	£26.96	78%	£5.93
356908	PVCu Socket Plain 90mm	£41.34	78%	£9.10
356909	PVCu Socket Plain 110mm	£59.21	78%	£13.03
356910	PVCu Socket Plain 125mm	£97.18	78%	£21.38
356911	PVCu Socket Plain 140mm	£140.32	78%	£30.87
356912	PVCu Socket Plain 160mm	£150.68	78%	£33.15
356913	PVCu Socket Plain 200mm	£360.39	78%	£79.29
356914	PVCu Socket Plain 225mm	£430.56	78%	£94.72
356915	PVCu Socket Plain 250mm	£739.43	78%	£162.67
356916	PVCu Socket Plain 315mm	£1,452.53	78%	£319.56
