PVCu Metric Short Radius Bend 90° Plain
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Fitting Type: Short Radius Bend 90°
- Connection Type: Plain (solvent weld)
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
- Size Range: 20mm to 110mm
Description
This short radius 90° bend is designed to join two same-diameter PVCu pipes at a right angle, providing a compact turning solution where space is limited. Suitable for solvent weld systems, it offers a secure and durable connection, making it ideal for installations requiring tight directional changes in industrial and fluid handling systems.
Key Features & Benefits
- Joins two same-size pipes at a 90° angle with a short radius bend
- Ideal for installations with restricted space
- Plain ends for solvent weld installation
- Constructed from durable, corrosion-resistant PVCu
- Suitable for use in pressure systems and water handling applications

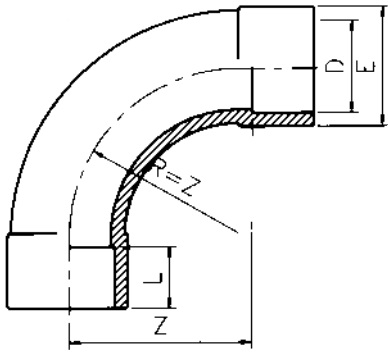

| SKU | Supplier Code | Nominal Size (mm) | L (mm) | Z (mm) | E (mm) |
| 356705 | RFICUI0200 | 20 | 16 | 40 | 27 |
| 356706 | RFICUI0250 | 25 | 19 | 50 | 33 |
| 356707 | RFICUI0320 | 32 | 22 | 64 | 41 |
| 356708 | RFICUI0400 | 40 | 26 | 80 | 50 |
| 356709 | RFICUI0500 | 50 | 31 | 100 | 61 |
| 356710 | RFICUI0630 | 63 | 38 | 126 | 76 |
| 356711 | RFICUI0750 | 75 | 44 | 150 | 90 |
| 356712 | RFICUI0900 | 90 | 51 | 180 | 110 |
| 356713 | RFICUI1100 | 110 | 61 | 220 | 132 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
