PVCu Metric Elbow 45° Plain

Loading...

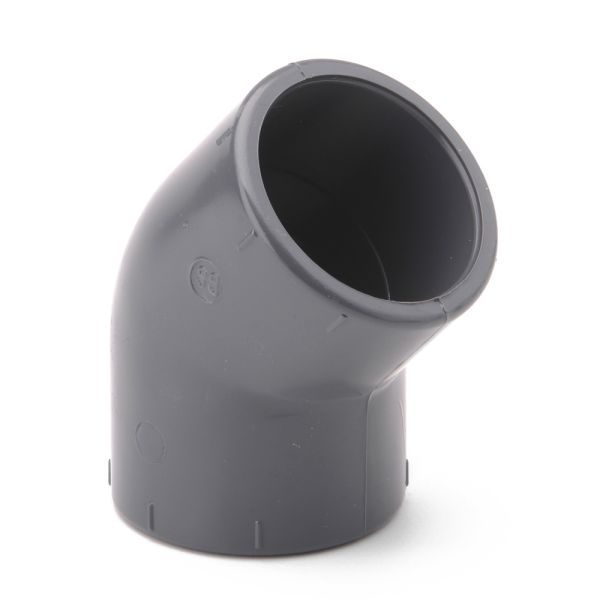

main product photo
More Info
Useful Information

Technical Specification

  • Manufacturer: Effast
  • Material: PVCu (Polyvinyl Chloride Unplasticised)
  • Fitting Type: 45° Elbow
  • Connection Type: Plain (solvent weld)
  • Pressure Rating: 15 bar at 20°C
  • Operating Temperature: 5°C to +60°C
  • Size Range: 16mm to 315mm

Description

This 45° plain elbow fitting is used to change the direction of flow in a metric PVCu pipe system, joining two pipes of the same diameter at an angled bend. Suitable for solvent weld installation, it offers a secure and durable connection, making it ideal for use in industrial, water treatment, and general pressure applications.

Key Features & Benefits

  • Creates a 45° change in direction in pipework
  • Joins same-diameter PVC pipes using solvent cement
  • Plain ends for easy solvent weld installation
  • Strong, corrosion-resistant PVCu construction
  • Suitable for use in metric pressure systems

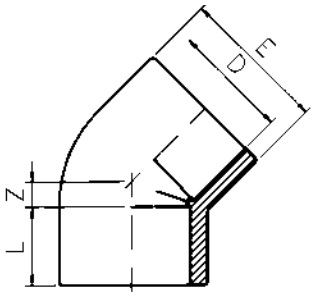

PVC Elbow 45 Plain Diagram

SKU Supplier Code Nominal Size (mm) L (mm) Z (mm) E (mm)
356856 RFIGYI0160 16 14 6 23
356857 RFIGYI0200 20 16 11 27
356858 RFIGYI0250 25 19 6 33
356859 RFIGYI0320 32 22 8 41
356860 RFIGYI0400 40 26 10 50
356861 RFIGYI0500 50 31 12 61
356862 RFIGYI0630 63 38 15 75
356863 RFIGYI0750 75 44 18 89
356864 RFIGYI0900 90 51 21 106
356865 RFIGYI1100 110 61 25 128
356866 RFIGYI1250 125 69 27 145
356867 RFIGYI1400 140 76 32 164
356868 RFIGYI1600 160 86 36 184
356869 RFIGYI2000 200 106 43 232
356870 RFIGYI2250 225 119 49 258
356871 RFIGYI2500 250 131 58 286
356872 RFIGYI3150 315 164 66 359



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
356856 PVCu Elbow 45 Plain 16mm £6.28 80%
You Pay:  £1.24
356857 PVCu Elbow 45 Plain 20mm £6.86 80%
You Pay:  £1.36
356858 PVCu Elbow 45 Plain 25mm £7.43 80%
You Pay:  £1.47
356859 PVCu Elbow 45 Plain 32mm £8.49 80%
You Pay:  £1.68
356860 PVCu Elbow 45 Plain 40mm £12.45 80%
You Pay:  £2.47
356861 PVCu Elbow 45 Plain 50mm £13.53 80%
You Pay:  £2.68
356862 PVCu Elbow 45 Plain 63mm £23.32 80%
You Pay:  £4.62
356863 PVCu Elbow 45 Plain 75mm £44.02 80%
You Pay:  £8.72
356864 PVCu Elbow 45 Plain 90mm £54.72 80%
You Pay:  £10.83
356865 PVCu Elbow 45 Plain 110mm £115.98 80%
You Pay:  £22.96
356866 PVCu Elbow 45 Plain 125mm £178.59 80%
You Pay:  £35.36
356867 PVCu Elbow 45 Plain 140mm £231.21 80%
You Pay:  £45.78
356868 PVCu Elbow 45 Plain 160mm £270.22 80%
You Pay:  £53.50
356869 PVCu Elbow 45 Plain 200mm £579.99 80%
You Pay:  £114.84
356870 PVCu Elbow 45 Plain 225mm £745.82 80%
You Pay:  £147.67
356871 PVCu Elbow 45 Plain 250mm £1,764.84 80%
You Pay:  £349.44
356872 PVCu Elbow 45 Plain 315mm £3,288.28 80%
You Pay:  £651.08
