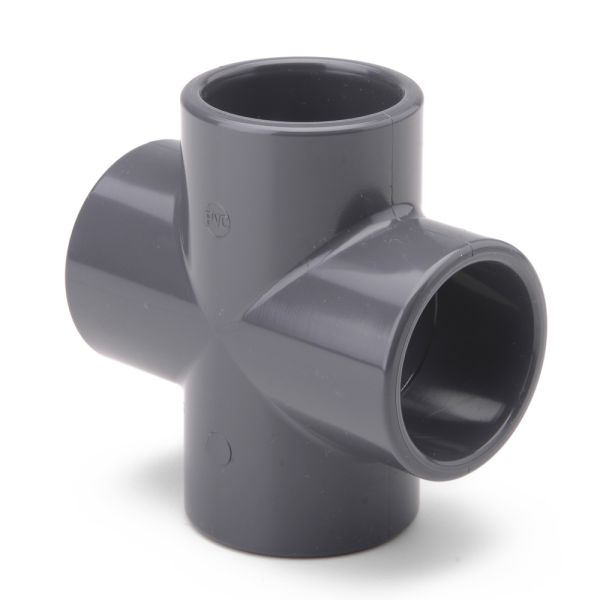

PVCu Metric Cross 90° Plain
Useful Information
Technical Specification
- Manufacturer: Effast
- Material: PVCu (Polyvinyl Chloride Unplasticised)
- Fitting Type: Cross 90°
- Connection Type: Plain (solvent weld)
- Pressure Rating: 15 bar at 20°C
- Operating Temperature: 5°C to +60°C
- Size Range: 20mm to 63mm
Description
This plain 90° cross fitting is used to connect four lengths of metric PVCu pipe of the same diameter at right angles, forming a four-way junction in pressure systems. Suitable for solvent weld installation, it provides a strong, leak-proof connection ideal for fluid distribution, branching, or manifold assemblies in industrial and commercial pipework.
Key Features & Benefits
- Connects four same-size PVC pipes at 90° angles
- Creates a four-way junction for even flow distribution
- Plain ends for solvent weld bonding
- Robust, corrosion-resistant PVCu construction
- Suitable for use in metric pressure systems

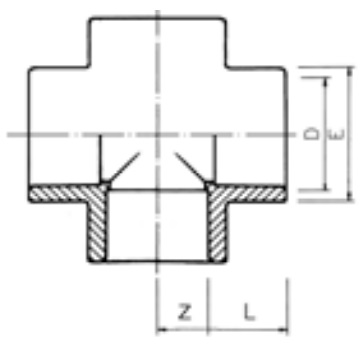

| SKU | Supplier Code | Nominal Size (mm) | L (mm) | Z (mm) | E (mm) |
| 356720 | RFICXI0200 | 20 | 16 | 11 | 28 |
| 356721 | RFICXI0250 | 25 | 19 | 14 | 34 |
| 356722 | RFICXI0320 | 32 | 22 | 17 | 42 |
| 356723 | RFICXI0400 | 40 | 26 | 21 | 51 |
| 356724 | RFICXI0500 | 50 | 31 | 26 | 61 |
| 356725 | RFICXI0630 | 63 | 38 | 33 | 75 |
