PVCu Metric Adaptor Plain F x Thread M

Loading...

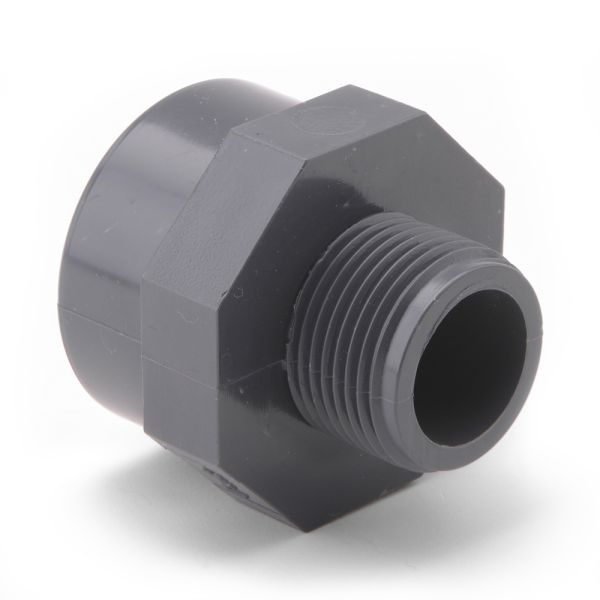

main product photo
More Info
Useful Information

Technical Specification

  • Manufacturer: Effast
  • Material: PVCu (Unplasticised Polyvinyl Chloride)
  • Connection Type: Female Plain Socket (solvent weld) x Male BSP Thread
  • Size Range: 16mm x 3/8″ – 110mm x 4″
  • Pressure Rating: 15 bar at 20°C
  • Operating Temperature: 5°C to +60°C

Description

This adaptor fitting provides a male BSP thread connection at the end of a plain PVC pipe. The plain female socket is designed for solvent-weld bonding, making it ideal for connecting pipework to threaded components in pressurised or closed-loop systems.

Key Features & Benefits

  • Adds a BSP male thread to a plain PVC pipe
  • The female socket end bonds securely with solvent cement
  • Ideal for connecting to threaded valves or fittings
  • Strong, chemical-resistant PVCu construction

PVC Adaptor Plain F x Thread M Diagram

SKU Supplier Code Nominal Size (mm x mm x Inch) L1 (mm) L2 (mm) L3 (mm) H (mm) O (mm)
356439 RFPAMP012A 12 x 16 x 3/8 12 14 11 36 22
356440 RFPAMP016A 16 x 20 x 3/8 14 16 11 40 24
356441 RFPAMP016B 16 x 20 x 1/2 14 16 15 43 24
356442 RFPAMP020A 20 x 25 x 3/8 16 19 11 43 30
356443 RFPAMP020B 20 x 25 x 1/2 16 19 15 46 30
356444 RFPAMP020C 20 x 25 x 3/4 16 19 16 47 30
356445 RFPAMP025B 25 x 32 x 1/2 19 22 15 49 36
356446 RFPAMP025C 25 x 32 x 3/4 19 22 16 50 36
356447 RFPAMP025D 25 x 32 x 1 19 22 19 53 36
356448 RFPAMP032C 32 x 40 x 3/4 22 26 16 54 46
356449 RFPAMP032D 32 x 40 x 1 22 26 19 57 46
356450 RFPAMP032E 32 x 40 x 1 1/4 22 26 21 60 46
356451 RFPAMP040D 40 x 50 x 1 26 31 19 64 55
356452 RFPAMP040E 40 x 50 x 1 1/4 26 31 21 67 55
356453 RFPAMP040F 40 x 50 x 1 1/2 26 31 21 67 55
356454 RFPAMP050E 50 x 63 x 1 1/4 31 38 21 74 65
356455 RFPAMP050F 50 x 63 x 1 1/2 31 38 21 74 65
356456 RFPAMP050G 50 x 63 x 2 31 38 26 78 65
356457 RFPAMP063F 63 x 75 x 1 1/2 38 44 21 80 80
356458 RFPAMP063G 63 x 75 x 2 38 44 26 84 80
356459 RFPAMP063H 63 x 75 x 2 1/2 38 44 30 91 80
356460 RFPAMP075G 75 x 90 x 2 44 52 26 94 95
356461 RFPAMP075H 75 x 90 x 2 1/2 44 52 30 99 95
356462 RFPAMP075I 75 x 90 x 3 44 52 33 102 95
356463 RFPAMP090H 90 x 110 x 2 1/2 51 61 30 110 115
356464 RFPAMP090I 90 x 110 x 3 51 61 33 113 115
356465 RFPAMP090L 90 x 110 x 4 51 61 39 118 115
356466 RFPAMP110I 110 x 125 x 3 61 66 33 115 130
356467 RFPAMP110L 110 x 125 x 4 61 66 39 120 130



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
356439 PVCu Adaptor Plain x Threaded Male 12/16mm x 3/8" £5.06 80%
You Pay:  £1.00
356440 PVCu Adaptor Plain x Threaded Male 16/20mm x 3/8" £5.06 80%
You Pay:  £1.00
356441 PVCu Adaptor Plain x Threaded Male 16/20mm x 1/2" £5.06 80%
You Pay:  £1.00
356442 PVCu Adaptor Plain x Threaded Male 20/25mm x 3/8" £5.24 80%
You Pay:  £1.04
356443 PVCu Adaptor Plain x Threaded Male 20/25mm x 1/2" £5.24 80%
You Pay:  £1.04
356444 PVCu Adaptor Plain x Threaded Male 20/25mm x 3/4" £5.24 80%
You Pay:  £1.04
356445 PVCu Adaptor Plain x Threaded Male 25/32mm x 1/2" £6.10 80%
You Pay:  £1.21
356446 PVCu Adaptor Plain x Threaded Male 25/32mm x 3/4" £6.10 80%
You Pay:  £1.21
356447 PVCu Adaptor Plain x Threaded Male 25/32mm x 1" £6.10 80%
You Pay:  £1.21
356448 PVCu Adaptor Plain x Threaded Male 32/40mm x 3/4" £7.50 80%
You Pay:  £1.49
356449 PVCu Adaptor Plain x Threaded Male 32/40mm x 1" £7.50 80%
You Pay:  £1.49
356450 PVCu Adaptor Plain x Threaded Male 32/40mm x 1 1/4" £7.50 80%
You Pay:  £1.49
356451 PVCu Adaptor Plain x Threaded Male 40/50mm x 1" £15.05 80%
You Pay:  £2.98
356452 PVCu Adaptor Plain x Threaded Male 40/50mm x 1 1/4" £15.05 80%
You Pay:  £2.98
356453 PVCu Adaptor Plain x Threaded Male 40/50mm x 1 1/2" £15.05 80%
You Pay:  £2.98
356454 PVCu Adaptor Plain x Threaded Male 50/63mm x 1 1/4" £21.83 80%
You Pay:  £4.32
356455 PVCu Adaptor Plain x Threaded Male 50/63mm x 1 1/2" £21.83 80%
You Pay:  £4.32
356456 PVCu Adaptor Plain x Threaded Male 50/63mm x 2" £21.83 80%
You Pay:  £4.32
356457 PVCu Adaptor Plain x Threaded Male 63/75mm x 1 1/2" £34.91 80%
You Pay:  £6.91
356458 PVCu Adaptor Plain x Threaded Male 63/75mm x 2" £34.91 80%
You Pay:  £6.91
356459 PVCu Adaptor Plain x Threaded Male 63/75mm x 2 1/2" £34.91 80%
You Pay:  £6.91
356460 PVCu Adaptor Plain x Threaded Male 75/90mm x 2" £61.59 80%
You Pay:  £12.19
356461 PVCu Adaptor Plain x Threaded Male 75/90mm x 2 1/2" £61.59 80%
You Pay:  £12.19
356462 PVCu Adaptor Plain x Threaded Male 75/90mm x 3" £61.59 80%
You Pay:  £12.19
356463 PVCu Adaptor Plain x Threaded Male 90/110mm x 2 1/2" £70.31 80%
You Pay:  £13.92
356464 PVCu Adaptor Plain x Threaded Male 90/110mm x 3" £70.31 80%
You Pay:  £13.92
356465 PVCu Adaptor Plain x Threaded Male 90/110mm x 4" £70.31 80%
You Pay:  £13.92
356466 PVCu Adaptor Plain x Threaded Male 110/125mm x 3" £91.21 80%
You Pay:  £18.06
356467 PVCu Adaptor Plain x Threaded Male 110/125mm x 4" £91.21 80%
You Pay:  £18.06
