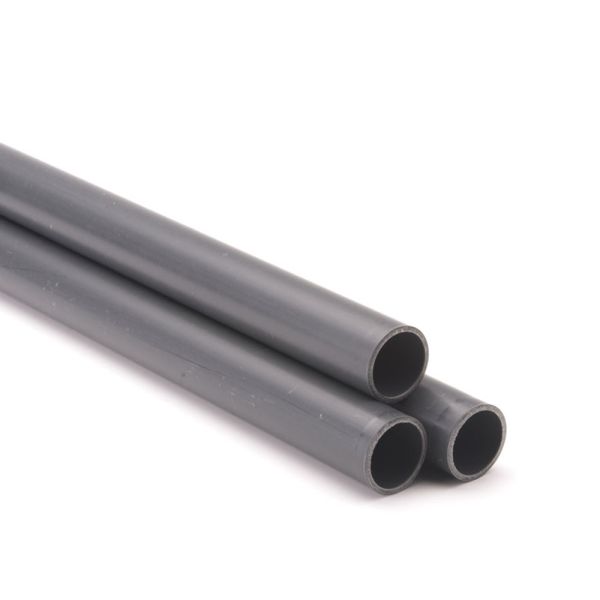

PVCu Pipe Inch Class E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Info

Useful Information

Technical Specification

Material: PVCu (Polyvinyl Chloride Unplasticised)
Size Range: 1/2" to 6"
Length Options: 3m or 6m
Pressure Rating: 15 bar at 20°C
Operating Temperature: 5°C to +60°C
Standards: BS 4346, EN 1452 Parts 1, 2, and 3

Description

Manufactured from strong, unplasticised PVC (PVCu), this British Standard-sized pipe is ideal for demanding industrial and commercial applications. Available in sizes from 1/2" to 6" and supplied in 3m or 6m lengths, it offers a high pressure rating of 15 bar at 20°C. Please note, this pipe is not suitable for compressed air systems and, due to its bespoke characteristics, is non-returnable.

Key Features & Benefits

British Standard sizing based on nominal bore measurements
Pressure rated to 15 bar at 20°C
Operating temperature range from 5°C to +60°C
Complies with BS 4346 and EN 1452 Parts 1, 2, and 3 (supersedes BS 3505)
Not suitable for use with compressed air applications

Product Code	Nominal Size (inch)	Average Outside Diameter (mm)	Average Bore Inside Diameter (mm)	Average Wall Thickness (mm)	Length (m)	Weight (kg)
356658	1/2	21.3	17.5	1.9	3	0.68
356657	1/2	21.3	17.5	1.9	6	1.35
356660	3/4	26.8	22.4	2.2	3	0.96
356659	3/4	26.8	22.4	2.2	6	1.91
356662	1	33.6	28.6	2.5	3	1.37
356661	1	33.6	28.6	2.5	6	2.73
356664	1 1/4	42.2	36.2	3	3	2.15
356663	1 1/4	42.2	36.2	3	6	4.3
356666	1 1/2	48.2	41.4	3.4	3	2.78
356665	1 1/2	48.2	41.4	3.4	6	5.56
356668	2	60.3	51.9	4.2	3	4.39
356667	2	60.3	51.9	4.2	6	8.77
359397	2 1/2	75.2	65.4	4.9	3	7.36
359396	2 1/2	75.2	65.4	4.9	6	14.71
356670	3	88.9	76.5	6.2	3	9.4
356669	3	88.9	76.5	6.2	6	18.8
356672	4	114.3	98.5	7.9	3	12.74
356671	4	114.3	98.5	7.9	6	25.47
356674	6	168.3	144.9	11.7	3	30.89
356673	6	168.3	144.9	11.7	6	61.77

Temperature to Pressure Relationship
Temperature (°C)	Maximum Pressure (bar)
0	15
20	15
30	13.5
40	10.5
50	6.7
60	2.2

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
356658	PVCu Pipe Class E 15 Bar 3m x 1/2"	£11.86	70%	You Pay: £3.52
356657	PVCu Pipe Class E 15 Bar 6m x 1/2"	£23.73	70%	You Pay: £7.05
356660	PVCu Pipe Class E 15 Bar 3m x 3/4"	£16.87	70%	You Pay: £5.01
356659	PVCu Pipe Class E 15 Bar 6m x 3/4"	£33.66	70%	You Pay: £10.00
356662	PVCu Pipe Class E 15 Bar 3m x 1"	£21.67	70%	You Pay: £6.44
356661	PVCu Pipe Class E 15 Bar 6m x 1"	£43.37	70%	You Pay: £12.88
356664	PVCu Pipe Class E 15 Bar 3m x 1 1/4"	£33.93	70%	You Pay: £10.08
356663	PVCu Pipe Class E 15 Bar 6m x 1 1/4"	£67.78	70%	You Pay: £20.13
356666	PVCu Pipe Class E 15 Bar 3m x 1 1/2"	£44.13	70%	You Pay: £13.11
356665	PVCu Pipe Class E 15 Bar 6m x 1 1/2"	£88.26	70%	You Pay: £26.21
356668	PVCu Pipe Class E 15 Bar 3m x 2"	£63.46	70%	You Pay: £18.85
356667	PVCu Pipe Class E 15 Bar 6m x 2"	£126.97	70%	You Pay: £37.71
359397	PVCu Pipe Class E 15 Bar 3m x 2 1/2"	£102.25	70%	You Pay: £30.37
359396	PVCu Pipe Class E 15 Bar 6m x 2 1/2"	£204.53	70%	You Pay: £60.75
356670	PVCu Pipe Class E 15 Bar 3m x 3"	£138.71	70%	You Pay: £41.20
356669	PVCu Pipe Class E 15 Bar 6m x 3"	£277.41	70%	You Pay: £82.39
356672	PVCu Pipe Class E 15 Bar 3m x 4"	£218.93	70%	You Pay: £65.02
356671	PVCu Pipe Class E 15 Bar 6m x 4"	£437.84	70%	You Pay: £130.04
356674	PVCu Pipe Class E 15 Bar 3m x 6"	£472.55	70%	You Pay: £140.35
356673	PVCu Pipe Class E 15 Bar 6m x 6"	£945.03	70%	You Pay: £280.67
