Class T

Useful Information

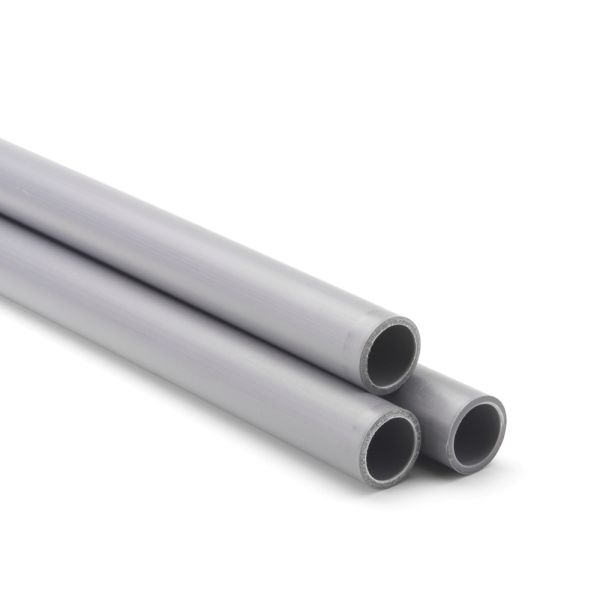

Effast ABS pipe, Class T, is available in sizes 1/2" to 2".

The ABS pipes in this section are all British Standard sized. This standard is based on the nominal bore of the pipes across the full range and not the diameter. For clarification, please see the table below. If in doubt, or if you require a specific inside diameter, please ring us to avoid ordering the wrong pipework.

Class T pipe has thicker walls than Class C and Class E, so it can be threaded and machined.



Manufacturer Effast
Pressure Rating 9 bar at 20°C
Operating Temperature -40°C to 70°C
Standards BS 5391



ABS Pipe Dimensions - Class T
Nominal Size (inch) Average Outside Diameter (mm) Average Bore Inside Diameter (mm) Average Wall Thickness (mm)
½ 21.4 14.2 3.6
¾ 26.8 19.6 3.6
1 33.6 24.9 4.4
42.3 31.7 5.3
48.3 36.3 6.0
2 60.4 46.0 7.2




IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
359760ABS Pipe Class T 12 Bar 3m x 1/2" £40.07 65% £14.03
353080ABS Pipe Class T 12 Bar 6m x 1/2" £80.20 61% £31.28
359761ABS Pipe Class T 12 Bar 3m x 3/4" £45.46 65% £15.91
353081ABS Pipe Class T 12 Bar 6m x 3/4" £90.96 61% £35.47
359762ABS Pipe Class T 12 Bar 3m x 1" £64.92 65% £22.72
353082ABS Pipe Class T 12 Bar 6m x 1" £129.80 61% £50.62
359763ABS Pipe Class T 12 Bar 3m x 1 1/4" £113.60 65% £39.76
353083ABS Pipe Class T 12 Bar 6m x 1 1/4" £227.18 61% £88.60
359764ABS Pipe Class T 12 Bar 3m x 1 1/2" £114.86 65% £40.20
353084ABS Pipe Class T 12 Bar 6m x 1 1/2" £229.75 61% £89.60
359765ABS Pipe Class T 12 Bar 3m x 2" £156.47 65% £54.76
353085ABS Pipe Class T 12 Bar 6m x 2" £312.97 61% £122.06
