Class E

Useful Information

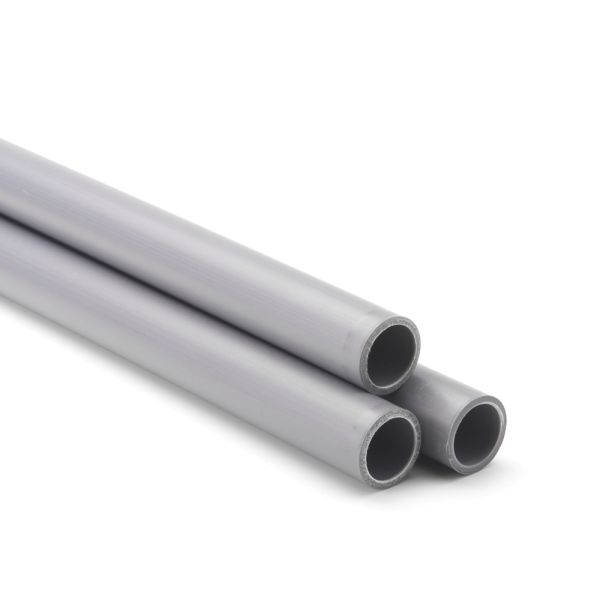

The Effast Class E ABS pipes in this section are all British Standard sized. This standard is based on the nominal bore of the pipes across the full range and not the diameter. For clarification, please see the table below. If in doubt, or if you require a specific inside diameter, please ring us to avoid ordering the wrong pipework.



Manufacturer Effast
Pressure Rating 15 bar at 20°C
Operating Temperature -40°C to 70°C
Standards BS 5391

ABS Pipe Dimensions - Class E
Nominal Size (inch) Average Outside Diameter (mm) Average Bore Inside Diameter (mm) Average Wall Thickness (mm)
½ 21.4 17.4 2.0
¾ 26.8 21.8 2.5
1 33.6 27.3 3.2
42.3 34.4 4.0
48.3 39.2 4.6
2 60.4 49.2 5.6
75.2 64.0 5.6
3 88.9 72.4 8.3
4 114.3 93.1 10.6




IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353065ABS Pipe Class E 15 Bar 3m x 1/2" £23.16 65% £8.10
353064ABS Pipe Class E 15 Bar 6m x 1/2" £46.33 61% £18.07
353067ABS Pipe Class E 15 Bar 3m x 3/4" £35.74 65% £12.51
353066ABS Pipe Class E 15 Bar 6m x 3/4" £71.47 61% £27.87
353069ABS Pipe Class E 15 Bar 3m x 1" £47.10 65% £16.48
353068ABS Pipe Class E 15 Bar 6m x 1" £94.22 61% £36.75
353071ABS Pipe Class E 15 Bar 3m x 1 1/4" £70.24 65% £24.59
353070ABS Pipe Class E 15 Bar 6m x 1 1/4" £140.46 61% £54.78
353073ABS Pipe Class E 15 Bar 3m x 1 1/2" £92.62 65% £32.42
353072ABS Pipe Class E 15 Bar 6m x 1 1/2" £185.22 61% £72.24
353075ABS Pipe Class E 15 Bar 3m x 2" £116.19 65% £40.67
353074ABS Pipe Class E 15 Bar 6m x 2" £232.41 61% £90.64
353077ABS Pipe Class E 15 Bar 3m x 3" £232.90 65% £81.52
353076ABS Pipe Class E 15 Bar 6m x 3" £465.82 61% £181.67
353079ABS Pipe Class E 15 Bar 3m x 4" £375.13 65% £131.29
353078ABS Pipe Class E 15 Bar 6m x 4" £750.27 61% £292.61
