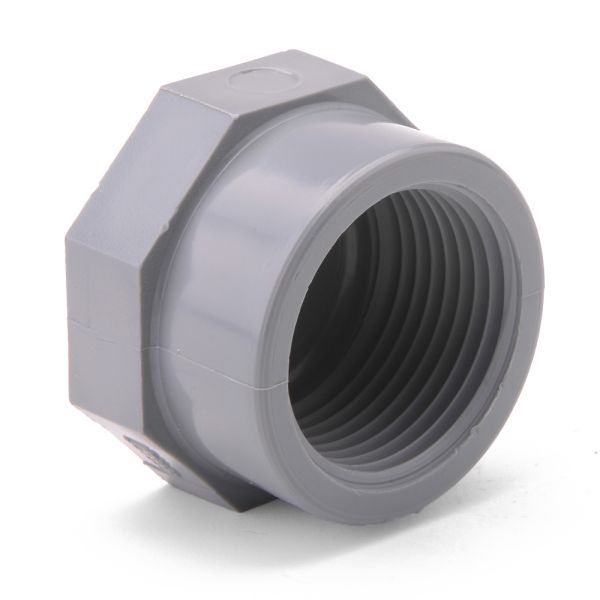

ABS Inch End Cap Threaded F
Useful Information
Technical Specification
- Material: ABS (body), EPDM (seal)
- Size Range: 1/2" to 3"
- Pressure Rating: 16 bar at 20°C
- Operating Temperature: -40°C to +60°C
- Connection Type: BSP female threaded
Description
Ideal for securely sealing ABS threaded fittings with a male end, this fitting ensures a tight and reliable closure. Manufactured from durable ABS with an EPDM seal, it provides excellent resistance to pressure, impact, and a range of chemicals, making it a dependable choice across industrial applications.
Key Features & Benefits
- BSP threaded female end
- Strong ABS body with flexible EPDM seal
- Excellent impact and chemical resistance
- Easy and secure installation

| SKU | Supplier Code | Nominal Size (inch) | L (mm) | H (mm) | E (mm) |
| 353039 | AFFCAF0200 | 1/2 | 15 | 21 | 28 |
| 353040 | AFFCAF0250 | 3/4 | 16 | 23 | 34 |
| 353041 | AFFCAF0320 | 1 | 19 | 26 | 42 |
| 353042 | AFFCAF0400 | 1 1/4 | 21 | 29 | 51 |
| 353043 | AFFCAF0500 | 1 1/2 | 21 | 32 | 61 |
| 353044 | AFFCAF0630 | 2 | 26 | 37 | 75 |
| 353045 | AFFCAF0900 | 3 | 33 | 53 | 103 |
