ABS Inch Composite Union Plain F x Thread M Brass
Useful Information

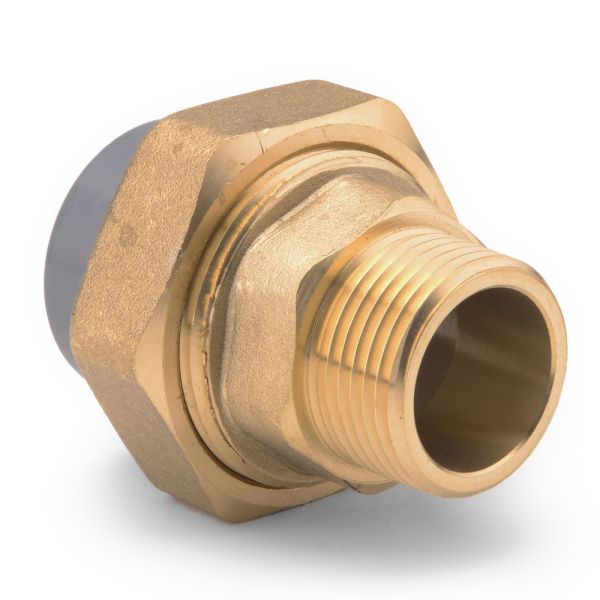

Effast ABS composite union fittings, with plain x brass BSP thread male ends, are available in sizes 1/2" to 3".
This fitting is used to join together two pieces of ABS pipe of the same dimensions with the ability to separate later. ABS solvent cement should be used along with cleaner to glue the plain end and the pipe together.
| Manufacturer | Effast |
| Material | ABS - acrylonitrile butadiene styrene, brass |
| Pressure Rating | 16 bar at 20°C |
| Operating Temperature | -40°C to +60°C |
| Product Code | Nominal Size (inch) | E (mm) | L1 (mm) | Z1 (mm) |
| 352999 | 1/2 | 28 | 58 | 3 |
| 353000 | 3/4 | 36 | 69 | 3 |
| 353001 | 1 | 42 | 72 | 3 |
| 353002 | 1 1/4 | 53 | 86 | 3 |
| 353003 | 1 1/2 | 59 | 92 | 3 |
| 353004 | 2 | 74 | 109 | 3 |
| 353005 | 2 1/2 | 93 | 127 | 3 |
| 353006 | 3 | 105 | 139 | 5 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
