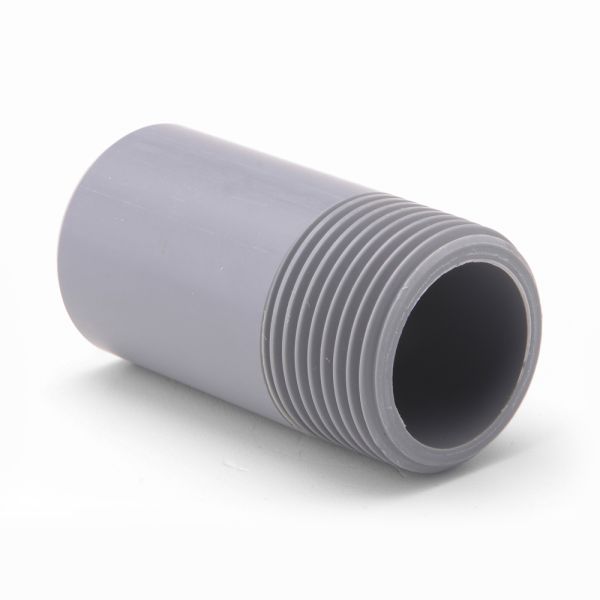

ABS Inch Barrel Nipple Plain M x Thread M
Useful Information
Effast plain x thread ABS barrel fittings are available in sizes 1/4" to 4".
Use to join a length of plain ABS pipe to a female threaded fitting.
| Manufacturer | Effast |
| Material | ABS - acrylonitrile butadiene styrene |
| Pressure Rating | 16 bar at 20°C |
| Operating Temperature | -40°C to +60°C |
| Product Code | Nominal Size (inch) | L1 (mm) | L2 (mm) |
| 353008 | 3/8 | 42 | 13 |
| 353009 | 1/2 | 50 | 16 |
| 353010 | 3/4 | 56 | 17 |
| 353011 | 1 | 63 | 20 |
| 353012 | 1 1/4 | 75 | 24 |
| 353013 | 1 1/2 | 88 | 30 |
| 353014 | 2 | 88 | 32 |
| 353015 | 2 1/2 | 106 | 35 |
| 353016 | 3 | 128 | 39 |
| 353017 | 4 | 153 | 43 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
