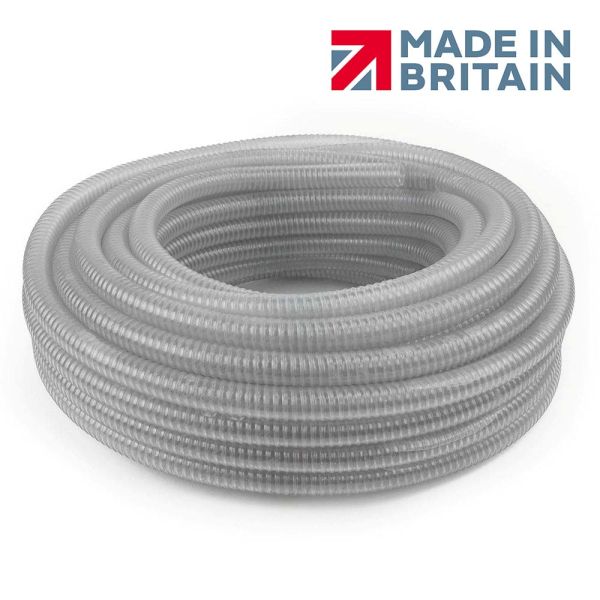

Copely Food Grade Delivery Hose
Technical Specification
- Material: Food quality, phthalate free flexible PVC
- Hose type: Food grade PVC delivery hose
- Construction: Transparent flexible food grade PVC with rigid PVC spiral helix
- Reinforcement: Shock resistant, crush and kink resistant white PVC helix
- Bore: Smooth for reduced flow resistance
- Weight class: Lightweight
- Compliance: EU No 10/2011 food contact compliant, NSF 51, NSF 61, RoHS 3
- Applications: Low pressure suction and delivery of food liquids, granules and light powders
Description
This lightweight, non toxic delivery hose is manufactured from EC compliant materials and is designed specifically for food handling and transfer applications. Its clear construction allows easy visual inspection of flow, helping operators quickly identify blockages or contamination during use.
Reinforced with a rigid, crush and kink resistant white PVC helix, the hose combines excellent durability with outstanding flexibility. It remains easy to handle even in colder working conditions and offers strong resistance to weathering, abrasion and a wide range of food related substances.
A smooth internal bore minimises frictional loss, making this hose well suited to low pressure suction and delivery of food liquids, granules and light powders across food processing and production environments.
Key Features & Benefits
- Food contact compliance: Manufactured to EN No 10/2011 standards for food applications
- Drinking water approved: NSF 51 and NSF 61 certified for potable water transfer
- Lightweight design: Easy to handle, install and manoeuvre on site
- Transparent construction: Allows clear visibility of flow and contents
- Cold temperature flexibility: Maintains flexibility even in colder environments
- Durable and resistant: Excellent resistance to chemicals, abrasion and weathering
- Smooth bore: Supports efficient flow with minimal pressure loss
- RoHS 3 compliant: Meets current environmental and safety requirements
Technical Data
| SKU | Internal Diameter (inch) | Internal Diameter (mm) | External Diameter (mm) | Wall Thickness (mm) | Maximum Working Pressure (bar) | Weight Per Metre (kg) | Bend Radius (mm) | Vacuum Metres H₂O |
| 492093 | 3/4 | 19 | 24.6 | 2.8 | 9 | 0.28 | 86 | 7 |
| 492095 | 1 | 25.4 | 32 | 3.3 | 8 | 0.33 | 114 | 7 |
| 492097 | 1 1/4 | 32 | 39.2 | 3.6 | 7 | 0.46 | 143 | 7 |
| 492099 | 1 1/2 | 38 | 45.4 | 3.7 | 6.5 | 0.55 | 171 | 7 |
| 492101 | 2 | 51.6 | 59.8 | 4.1 | 6 | 0.81 | 230 | 7 |
| 492103 | 2 1/2 | 63.5 | 71.9 | 4.2 | 5 | 1.04 | 284 | 7 |
| 492105 | 3 | 76 | 86.4 | 5.2 | 4 | 1.38 | 342 | 7 |
Downloads
-
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
