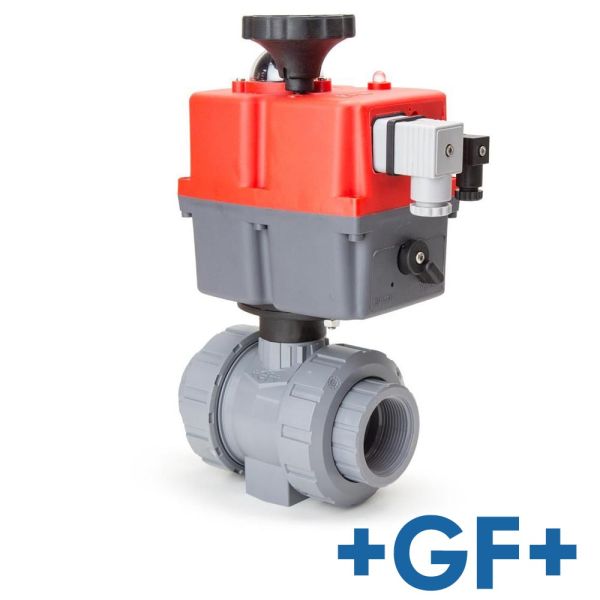

2-Way Threaded +GF+

These 2-Way Georg Fischer valves are available in sizes 1/2" to 2".

Ball valve body valve made from acrylonitrile butadiene styrene.

Imperial threaded ends fitted to these valves.

Actuator set to 24-240V AC/DC.

Actuator manufactured by J+J

Actuated valves are assembled and tested to order, they cannot be returned for refund.



Actuator:

The electric actuator is manufactured with a fully weatherproof Polyamide body that features a selectable manual override that stops the actuator responding to remote signals during operation.

It has an LED light to indicate the status of the actuator as well as auto voltage sensing and an electronic torque limiter with auto-gearbox relaxing.

Actuator Specification

Maximum Operational Torque	20Nm/177lb/in
Operating Temperature	-20°C to 70°C
Declutching	Manual and automatic
Operational Time Unload	10 Sec/ 90°
Torque Limiter	Electronic
3 Position Actuator	0°-45°-90° or 0°-90°-180°
Weatherproofing	IP67 Full weatherproof housing
Drive Type	Female star
Electrical Connection	Din plugs
Approvals	CE marked
Weight	1.8kg



(Actuator Datasheet PDF)

Valves:

The Double Union 2-way valves are manufactured by Georg Fischer and offer full WRAS approval across the range.

They have an ABS body with PTFE seals and offer a maximum working pressure of 10 bar.



IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
