Swivel Range: Allows angled adjustment up to 15° in any direction
Installation: Ready-to-use, pre-assembled component for quick and secure fixing
Description
Designed to accommodate non-vertical pipe runs, this swivel hanger is the ideal solution for angled installations. Its ball joint mechanism permits up to 15° of movement in any direction, offering superior flexibility where perfect alignment is not feasible. The unit comes pre-assembled with a slide nut, streamlining installation directly onto RapidRail channels. Engineered from high-quality zinc-plated steel, it delivers secure, adjustable support for pipework while reducing installation time and complexity on site.
Pre-assembled: With slide nut for quick rail attachment
Ideal for: Sloped or offset pipework installations
Zinc plated steel: Strong and corrosion-resistant
Compatible: With M8 and M10 threaded rods

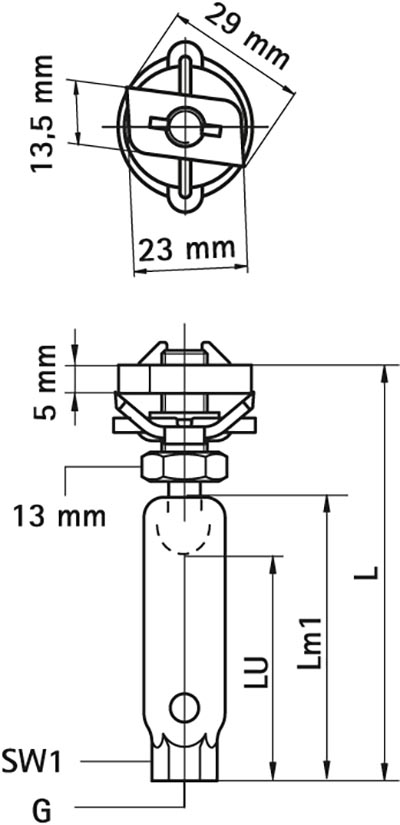

Dimensions
Product Code
Manufacturer Code
Thread Size
Lm1 (mm)
LU (mm)
L (mm)
491031
6520100
M8
15
12.5
49
491032
6520200
M8
37.5
32
74
491033
6520110
M10
15
9.5
49
491034
6520210
M10
37.5
32
74
Downloads
Datasheet
Brochure
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
