Vulcathene Large Oval Drip Cup
Technical Specification
- Manufacturer: Durapipe
- Material: Black co-polymer polypropylene (PP)
- Wall thickness: 3mm
- Thread connection: 1½" BSP
- Mounting type: Top mounted through work surface
- Supplied with: Integral grating, hose restraining plug and backnut
- Operating temperature: -20°C to 100°C
- Standards: Manufactured to ISO 9001
- Approvals: BBA Approved, Certificate 24/7091
- Application: Chemical waste and laboratory drainage
Description
The Vulcathene Large Oval Drip Cup is designed to provide increased capacity and improved access for drip containment in laboratory and chemical waste applications. Its elongated oval shape makes it particularly suitable where hoses, pipes or flexible connections require a wider working area while maintaining controlled drainage.
Manufactured from black co-polymer polypropylene with a 3mm wall thickness, the drip cup offers excellent resistance to aggressive chemicals, impact and abrasion. The deeply curved bowl and heavily sloped internal side walls help minimise splashing, directing liquids efficiently towards the outlet. An integral grating prevents debris from entering the drainage system while maintaining consistent flow.
Designed for top mounting through the work surface, the drip cup is secured using the supplied backnut. It is supplied complete with a hose restraining plug, allowing hoses to be safely positioned during use. The rim profile provides stability once installed, ensuring the unit remains firmly seated even in high-use environments.
With a generous opening and increased depth compared to smaller drip cups, the large oval drip cup is ideal for more demanding laboratory setups where greater containment and flexibility are required.
Key Features & Benefits
- Large oval opening: Provides increased access and capacity for hoses and fittings
- Splash-reducing design: Deeply curved bowl and sloped walls minimise splashing
- Chemical resistant construction: Polypropylene suited to aggressive waste environments
- Stable top-mounted installation: Secure fixing using threaded connection and backnut
- Supplied complete: Includes integral grating, hose restraining plug and backnut
- Durable wall thickness: 3mm construction for long-term reliability
- BBA approved: Independently certified for quality and performance

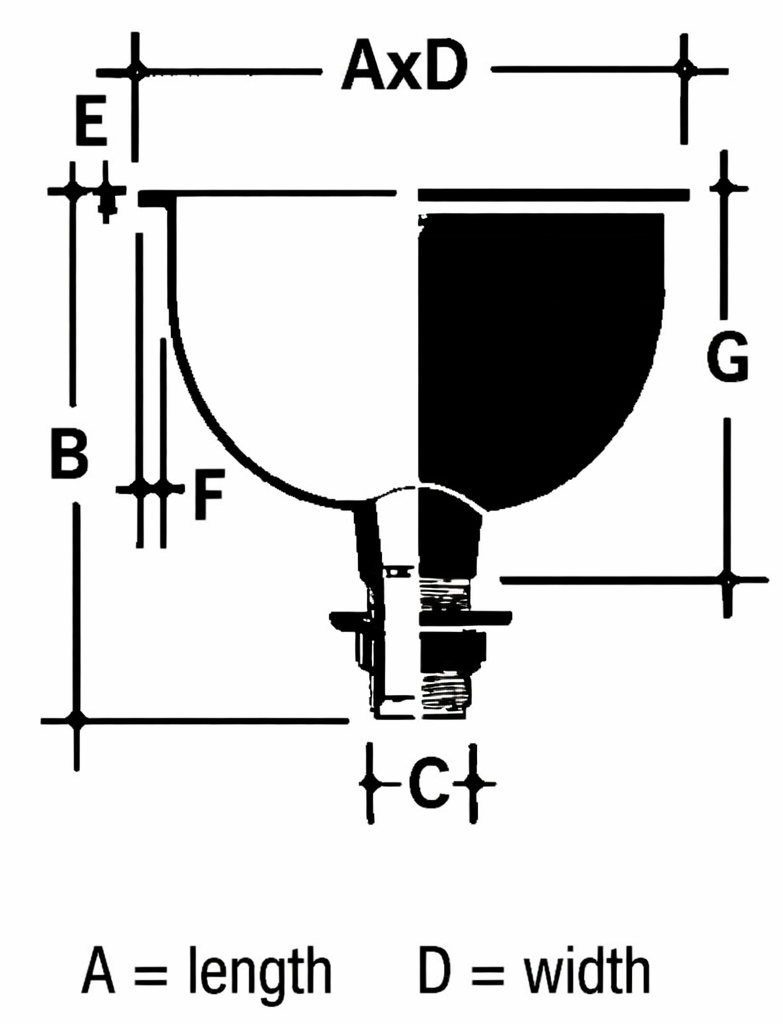

| Product Code | A (mm) | B (mm) | C (Inch BSP) | D (mm) | E (mm) | F (mm) | G (mm) |
| 376906 | 264 | 225 | 1 1/2 | 111 | 6 | 13 | 161 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
