PVC Union Threaded Inch
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 3/8" to 4"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Threaded (BSP)
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description

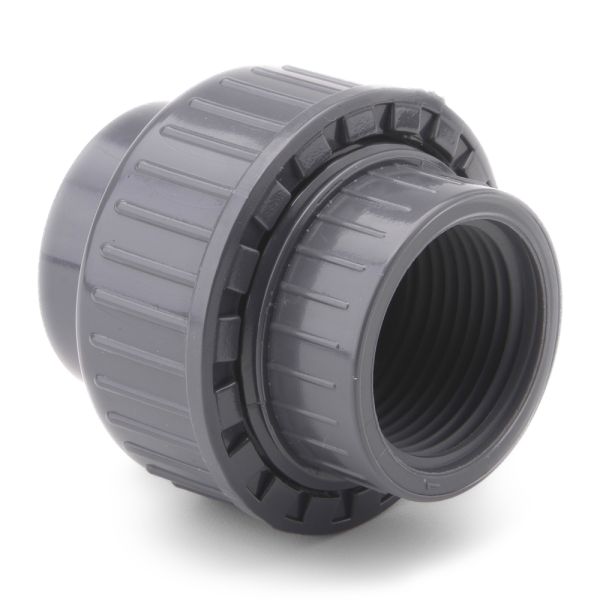

This PVCu threaded union is designed to provide a demountable connection between BSP threaded components within an imperial pipe system. Its three piece construction allows pipework, valves, or equipment to be disconnected easily for maintenance, inspection or replacement without cutting into the line.
Manufactured from corrosion-resistant PVCu, the union delivers reliable long-term performance in water systems, industrial installations and general engineering applications. Precisely formed BSP threads ensure secure mechanical joints, while the smooth internal bore supports efficient flow through the union when assembled.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Demountable threaded joint: Allows easy removal of components without disturbing surrounding pipework
- Three-piece union design: Central nut enables quick disassembly and reassembly
- BSP threaded ends: Provides secure mechanical connections on both sides
- Corrosion-resistant PVCu: Prevents rust, pitting, and scale build-up
- Smooth internal bore: Helps maintain efficient flow through the joint
- Imperial sizing compatibility: Designed to work with standard BSP threaded fittings
Dimensions
| SKU | Nominal Size (inch) | L min (mm) | F (mm) | Z max (mm) | H (mm) | E (mm) |
| 359821 | 3/8 | 11.4 | 3/4 | 19.2 | 42 | 34 |
| 356529 | 1/2 | 15 | 1 | 15 | 45 | 43 |
| 356530 | 3/4 | 16.3 | 1 1/4 | 18.4 | 51 | 54 |
| 356531 | 1 | 19.5 | 1 1/2 | 18 | 57 | 60 |
| 356532 | 1 1/4 | 21.4 | 2 | 25.2 | 68 | 75 |
| 356533 | 1 1/2 | 21.4 | 2 1/4 | 37.2 | 80 | 81 |
| 356534 | 2 | 25.7 | 2 3/4 | 46.6 | 98 | 99 |
| 359822 | 3 | 33.3 | 4 | 58.4 | 125 | 134 |
| 359823 | 4 | 39.3 | 5 | 66.4 | 145 | 163 |
