BSU Unlined Clips
Useful Information
Technical Specification
- Manufacturer: Flamco
- Material: Electrolytically zinc-plated steel
- Bolt Type: Slotted bolt with cross head
- Connection Options: M8/10 and M10/12
- Available Sizes: Up to 169mm
- Application: Wall and ceiling mounting of steel pipes in heating, ventilation, and plumbing installations
Description

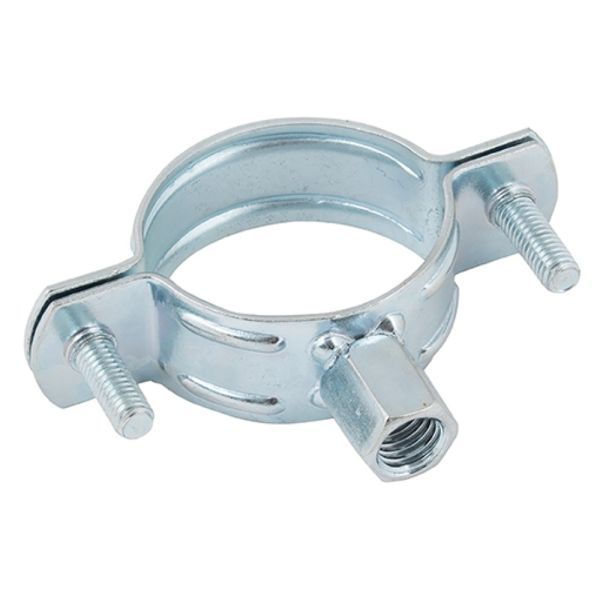

Flamco's BSU unlined clips are engineered for securely fixing steel pipes to walls and ceilings. Made from electrolytically zinc plated steel, they feature a slotted bolt with a cross head for flexible installation. Available in sizes up to 169mm and with M8/10 and M10/12 connection options, they provide a durable and dependable mounting solution for HVAC and plumbing systems.
Key Features & Benefits
- Zinc Plated Finish: Provides excellent corrosion resistance and long-lasting durability.
- Slotted Bolt with Cross Head: Allows for flexible tool access and quick installation.
- Dual Connection Options: Compatible with both M8/10 and M10/12 fittings for wider mounting versatility.
- Wide Size Range: Supports steel pipes up to 169mm in diameter.
- Secure Pipe Mounting: Suitable for fixed installations to walls and ceilings in demanding environments.
- Reputable Manufacturer: Flamco—market leader in HVAC solutions since the 1950s, known for continuous innovation and quality.
| SKU | Size | Connection | Strip Dimensions (mm) | Max. Working Load (N) | A (mm) | B (mm) | C (mm) |
| 385666 | 15-18mm | M8/10 | 20 x 1.5 | 1000 | 50 | 11 | 16 |
| 385667 | 20-25mm | M8/10 | 20 x 1.5 | 1000 | 60 | 16 | 16 |
| 385668 | 26-30mm | M8/10 | 20 x 1.5 | 1000 | 64 | 19 | 16 |
| 385669 | 32-36mm | M8/10 | 20 x 1.5 | 1000 | 71 | 22 | 16 |
| 385670 | 38-43mm | M8/10 | 20 x 1.5 | 1000 | 79 | 25 | 16 |
| 385671 | 44-49mm | M8/10 | 20 x 1.5 | 1000 | 84 | 28 | 16 |
| 385672 | 56-61mm | M8/10 | 20 x 1.5 | 1000 | 93 | 34 | 16 |
| 385673 | 75-80mm | M8/10 | 20 x 2.0 | 1300 | 118 | 44 | 16 |
| 385674 | 87-92mm | M8/10 | 20 x 2.0 | 1300 | 129 | 50 | 16 |
| 385675 | 108-116mm | M8/10 | 20 x 2.5 | 2150 | 160 | 62 | 16 |
| 385676 | 108-116mm | M10/12 | 20 x 2.5 | 2150 | 160 | 62 | 18 |
| 385677 | 131-141mm | M10/12 | 20 x 2.5 | 2150 | 188 | 75 | 18 |
| 385678 | 165-169mm | M10/12 | 20 x 2.5 | 2150 | 220 | 89 | 18 |
