BSK-I Clips
Useful Information
Technical Specification
- Manufacturer: Flamco
- Material: Electrolytically zinc-plated steel with TPE lining
- Connection Type: M10
- Available Sizes: Up to 90mm
- Noise Reduction:
- 20 dB (with spacer)
- 18 dB (without spacer)
- Functionality: Supplied spacers modify the clip's use between sliding and clamping
- Applications: Plastic pipe mounting in HVAC and plumbing systems
Description

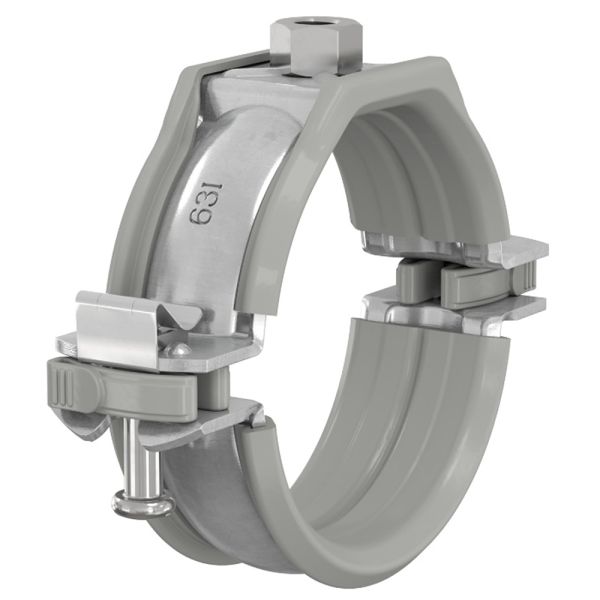

BSK-I clips by Flamco are expertly designed to securely mount plastic pipes to walls and ceilings in a wide range of installations. Constructed from electrolytically zinc plated steel and lined with a TPE (ThermoPlastic Elastomer) for added protection, these clips offer fast, reliable, and noise-reducing support. With sizes available up to 90mm, they are ideal for heating, ventilation, and pipework systems where quality and efficiency are essential.
Key Features & Benefits
- Durable Build: Electrolytically zinc plated for corrosion resistance and long service life.
- Noise Reduction: Reduces acoustic transmission by 20 dB with spacer, 18 dB without.
- TPE Insert: Soft lining protects plastic pipe surfaces and reduces vibration.
- Adaptable Function: Supplied spacer can be removed to change function from sliding to clamping.
- Quick Installation: Designed for fast and secure assembly, saving time on-site.
- Versatile Application: Suitable for mounting plastic pipes in both wall and ceiling installations.
- Reliable Manufacturer: Flamco—renowned for HVAC innovation and quality since the 1950s.
| SKU | Pipe External Dia. (mm) | Strip Dimension (mm) | Connection | Max Working Load (N) | A (mm) | B (mm) | C (mm) |
| 385793 | 16 | 28 x 1.5 | M8 | 1300 | 64 | 16 | 8 |
| 385794 | 20 | 28 x 1.5 | M8 | 1300 | 68 | 19 | 8 |
| 385795 | 25 | 28 x 1.5 | M8 | 1300 | 74 | 21 | 8 |
| 385796 | 32 | 28 x 1.5 | M8 | 1300 | 81 | 26 | 8 |
| 385797 | 40 | 28 x 1.5 | M8 | 1300 | 89 | 29 | 8 |
| 385798 | 50 | 28 x 1.5 | M8 | 1300 | 99 | 34 | 8 |
| 385799 | 56 | 28 x 2.0 | M8 | 1300 | 105 | 37 | 8 |
| 385800 | 63 | 28 x 2.0 | M8 | 1300 | 114 | 40 | 8 |
| 385801 | 75 | 28 x 2.0 | M8 | 2000 | 125 | 47 | 8 |
| 385802 | 90 | 28 x 2.0 | M8 | 2000 | 138 | 50 | 8 |
| 385803 | 110 | 28 x 2.5 | M8 | 2000 | 157 | 61 | 8 |
| 385804 | 125 | 28 x 2.5 | M8 | 2000 | 174 | 68 | 8 |
| 385805 | 160 | 28 x 2.5 | M8 | 2000 | 210 | 86 | 8 |
| 385806 | 200 | 28 x 2.5 | M8 | 2000 | 250 | 106 | 8 |
| 385807 | 75 | 28 x 2.0 | M10 | 2000 | 125 | 47 | 10 |
| 385808 | 90 | 28 x 2.0 | M10 | 2000 | 138 | 50 | 10 |
| 385809 | 110 | 28 x 2.5 | M10 | 2000 | 157 | 61 | 10 |
| 385810 | 125 | 28 x 2.5 | M10 | 2000 | 174 | 68 | 10 |
| 385811 | 160 | 28 x 2.5 | M10 | 2000 | 210 | 86 | 10 |
| 385812 | 200 | 28 x 2.5 | M10 | 2000 | 250 | 106 | 10 |
| 385813 | 250 | 28 x 3.0 | M10 | 2000 | 301 | 132 | 10 |
| 385814 | 315 | 28 x 3.0 | M10 | 2000 | 366 | 164 | 10 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
