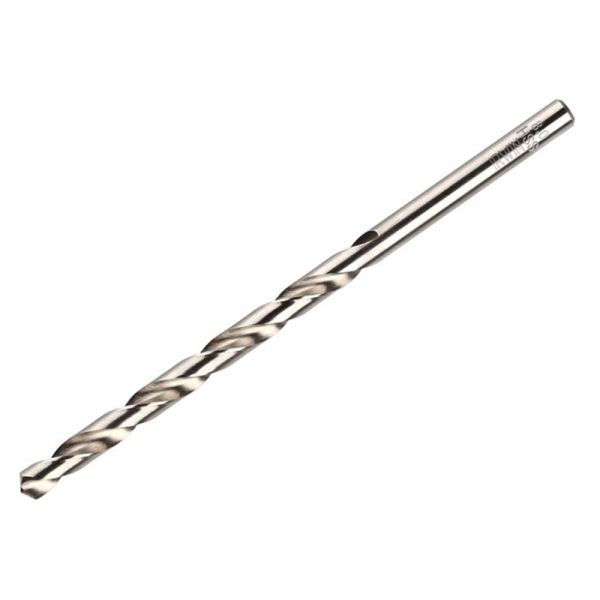

HSS Pro Drill Bits
Useful Information
Key Features / Tech Specs:
- Manufactured by Irwin Tools
- High-speed steel
- Manufactured to DIN 338 standards
- Also available in sets of 15 & 19
Useful Info:
These HSS pro drill bits offer fast drilling with an excellent finish due to the precision ground cutting edges. Along with this, they have a ground flute for accuracy and efficient chip removal and a universal 118° point shape for drilling a range of materials.
| Product Code | Tip Diameter (mm) | Length (mm) | Qty |
| 386331 | 1.0 | 34 | 1 |
| 386332 | 1.5 | 40 | 1 |
| 386333 | 2.0 | 49 | 1 |
| 386334 | 2.5 | 57 | 1 |
| 386335 | 3.0 | 61 | 1 |
| 386336 | 3.5 | 70 | 1 |
| 386337 | 4.0 | 75 | 1 |
| 386338 | 4.5 | 80 | 1 |
| 386339 | 5.0 | 86 | 1 |
| 386340 | 5.5 | 93 | 1 |
| 386341 | 6.0 | 93 | 1 |
| 386342 | 6.5 | 101 | 1 |
| 386343 | 7.0 | 109 | 1 |
| 386344 | 7.5 | 109 | 1 |
| 386345 | 8.0 | 117 | 1 |
| 386346 | 8.5 | 117 | 1 |
| 386347 | 9.0 | 125 | 1 |
| 386348 | 9.5 | 125 | 1 |
| 386349 | 10.0 | 133 | 1 |
| 386350 | Sizes Below | - | 15 |
| 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 8.0, 9.0 & 10.0 | |||
| 386352 | Sizes Below | - | 19 |
| 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5 & 10.0 | |||
| 386356 | 1.0 | 34 | 10 |
| 386357 | 1.5 | 40 | 10 |
| 386358 | 2.0 | 49 | 10 |
| 386359 | 2.5 | 57 | 10 |
| 386360 | 3.0 | 61 | 10 |
| 386361 | 3.5 | 70 | 10 |
| 386362 | 4.0 | 75 | 10 |
| 386363 | 4.5 | 80 | 10 |
| 386364 | 5.0 | 86 | 10 |
| 386365 | 5.5 | 93 | 10 |
| 386366 | 6.0 | 93 | 10 |
| 386367 | 6.5 | 101 | 10 |
| 386368 | 7.0 | 109 | 10 |
| 386369 | 7.5 | 109 | 5 |
| 386370 | 8.0 | 117 | 5 |
| 386371 | 8.5 | 117 | 5 |
| 386372 | 9.0 | 125 | 5 |
| 386373 | 9.5 | 125 | 5 |
| 386374 | 10.0 | 133 | 5 |
| 386375 | 10.5 | 133 | 5 |
| 386376 | 11.0 | 142 | 5 |
| 386377 | 11.5 | 142 | 5 |
| 386378 | 12.0 | 151 | 5 |
| 386379 | 12.5 | 151 | 5 |
| 386380 | 13.0 | 151 | 5 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
