Termination Fitting PVC-U
Useful Information

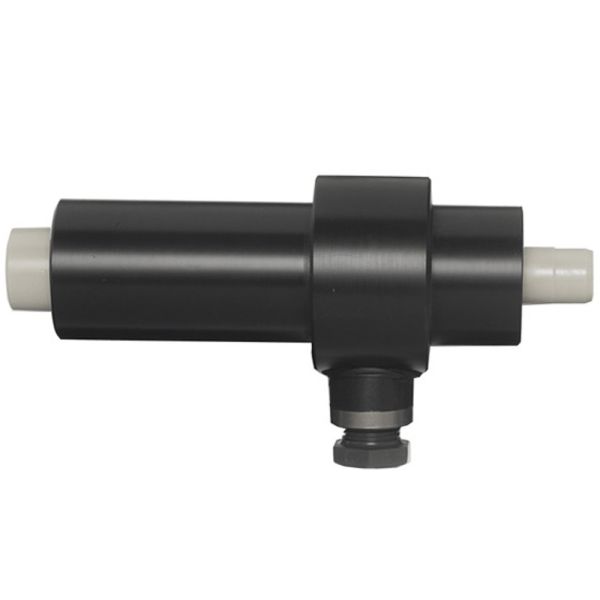

These Termination fittings are made from PVC-U.
They are designed for use within the dual containment system, Contain It Plus.
Â
| Pressure Rating | 10-16Â bar |
| Sizes | 20mm - 315mm |
| Tangit Product Code | Dytex Product Code | D (mm) | d (mm) | Tangit Weight (kg) | Dytex Weight (kg) |
| 396864 | 396878 | 50 | 20 | 0.286 | 0.284 |
| 396865 | 396879 | 50 | 25 | 0.295 | 0.294 |
| 396866 | 396880 | 63 | 32 | 0.405 | 0.429 |
| 396867 | 396881 | 75 | 40 | 0.633 | 0.644 |
| 396868 | 396882 | 90 | 50 | 0.994 | 0.993 |
| 396869 | 396883 | 110 | 63 | 1.554 | 1.553 |
| 396870 | 396884 | 125 | 75 | 2.105 | 2.105 |
| 396871 | 396885 | 140 | 90 | 2.921 | 2.929 |
| 396872 | 396886 | 160 | 110 | 3.994 | 4.006 |
| 396873 | Â | 180 | 125 | 5.444 | Â |
| 396874 | Â | 200 | 140 | 4.704 | Â |
| 396875 | Â | 225 | 160 | 6.225 | Â |
| 396876 | Â | 280 | 200 | 12.860 | Â |
| 396877 | Â | 315 | 225 | 11.320 | Â |
Â
| d (mm) | Zi (mm) | Zie (mm) | Za (mm) | D1 (mm) |
| 20 | 208 | 174 | 175 | 70 |
| 25 | 208 | 171 | 175 | 70 |
| 32 | 218 | 178 | 185 | 80 |
| 40 | 238 | 194 | 205 | 90 |
| 50 | 283 | 234 | 250 | 110 |
| 63 | 303 | 247 | 270 | 130 |
| 75 | 324 | 261 | 290 | 140 |
| 90 | 345 | 274 | 310 | 160 |
| 110 | 366 | 284 | 330 | 170 |
| 125 | 282 | 291 | 345 | 190 |
| 140 | 397 | 299 | 360 | 210 |
| 160 | 428 | 319 | 390 | 230 |
| 200 | 415 | 283 | 375 | 280 |
| 225 | 470 | 326 | 430 | 315 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
