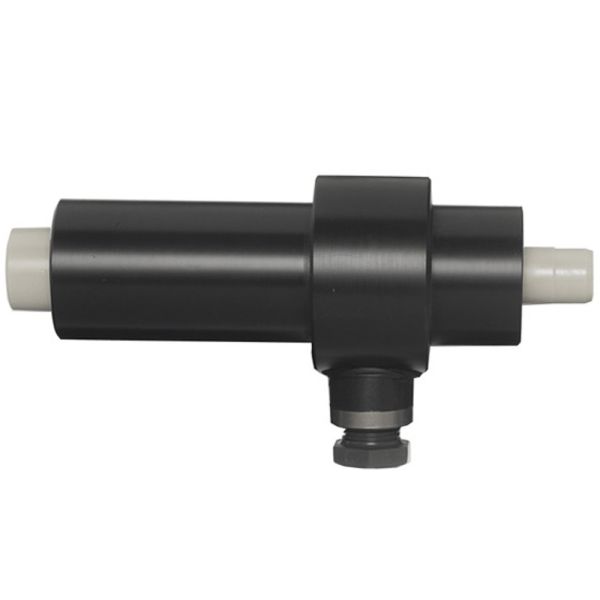

Termination Fitting PVC-C
Useful Information
These Termination fittings are made from PVC-c.
They are designed for use within the dual containment system, Contain It Plus.
Both Tangit and Dytex variations are available.
| Pressure Rating | 10-16 bar |
| Sizes | 20mm - 110mm |
| Tangit Product Code | Dytex Product Code | D (mm) | d (mm) | Tangit Weight (kg) | Dytex Weight (kg) |
| 396965 | 396974 | 50 | 20 | 0.304 | 0.288 |
| 396966 | 396975 | 50 | 25 | 0.313 | 0.313 |
| 396967 | 396976 | 63 | 32 | 0.455 | 0.441 |
| 396968 | 396977 | 75 | 40 | 0.626 | 0.654 |
| 396969 | 396978 | 90 | 50 | 1.080 | 1.080 |
| 396970 | 396979 | 110 | 63 | 1.651 | 1.651 |
| 396971 | 396980 | 125 | 75 | 2.227 | 2.227 |
| 396972 | 396981 | 140 | 90 | 2.983 | 3.020 |
| 396973 | 396982 | 160 | 110 | 4.355 | 4.355 |
| d (mm) | Zi (mm) | Zie (mm) | Za (mm) | D1 (mm) |
| 20 | 208 | 174 | 175 | 70 |
| 25 | 208 | 171 | 175 | 70 |
| 32 | 218 | 178 | 185 | 80 |
| 40 | 238 | 194 | 205 | 90 |
| 50 | 283 | 234 | 250 | 110 |
| 63 | 303 | 247 | 270 | 130 |
| 75 | 324 | 262 | 290 | 140 |
| 90 | 345 | 274 | 310 | 160 |
| 110 | 366 | 282 | 330 | 170 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
