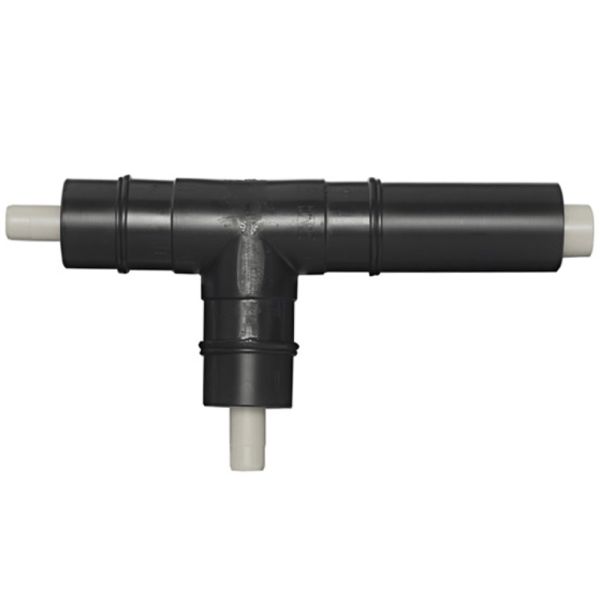

Tee 90° Equal PVC-C/PE100
Useful Information
These Tees are made from PVCC.
They are designed for use within the dual containment system, Contain It Plus.
Dytex and Tangit variations are both available.
| Pressure Rating | 10-16 bar |
| Sizes | 20mm - 315mm |
| Tangit Product Code | Dytex Product Code | D (mm) | d (mm) | Tangit Weight (kg) | Dytex Weight (kg) |
| 396947 | 396956 | 50 | 20 | 0.599 | 0.599 |
| 396948 | 396957 | 50 | 25 | 0.673 | 0.673 |
| 396949 | 396958 | 63 | 32 | 0.787 | 0.787 |
| 396950 | 396959 | 75 | 40 | 1.916 | 1.916 |
| 396951 | 396960 | 90 | 50 | 2.611 | 2.611 |
| 396952 | 396961 | 110 | 63 | 4.514 | 4.514 |
| 396953 | 396962 | 125 | 75 | 6.523 | 6.523 |
| 396954 | 396963 | 140 | 90 | 13.901 | 13.901 |
| 396955 | 396964 | 160 | 110 | 15.527 | 15.527 |
| D1 (mm) | ZA1 (mm) | ZA2 (mm) | L1 (mm) | Zi1 (mm) | Zi2 (mm) |
| 54 | 105 | 175 | 43 | 139 | 174 |
| 54 | 105 | 175 | 43 | 142 | 171 |
| 67 | 120 | 190 | 50 | 160 | 183 |
| 79 | 145 | 225 | 61 | 189 | 214 |
| 101 | 170 | 260 | 71 | 219 | 244 |
| 119 | 210 | 310 | 80 | 266 | 287 |
| 134 | 225 | 330 | 91 | 288 | 301 |
| 170 | 250 | 360 | 108 | 321 | 324 |
| 170 | 260 | 375 | 108 | 344 | 327 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
