L Series

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: stainless steel - 316
  • Manufactured to DIN 2353
  • L series (light)
  • Operating pressure up to 500 bar

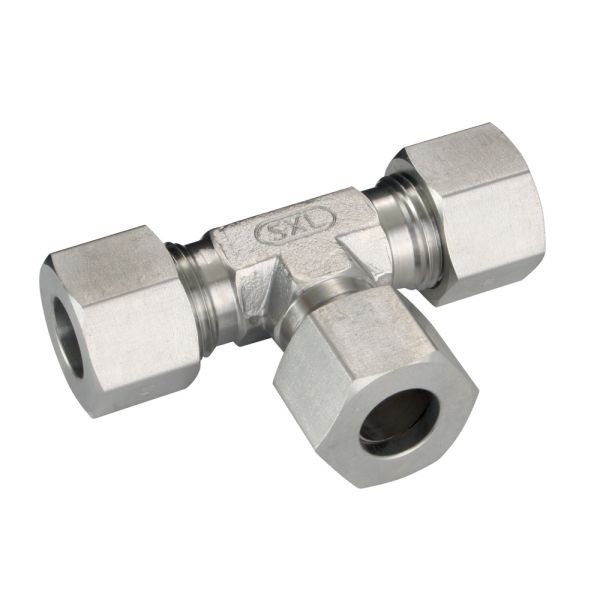

Tees

Product Code Outer Diameter (mm) L1 (mm) L2 (mm) SW2 (mm) SW3 (mm) Max. Pressure (bar)
361388 6 27 12 12 14 500
361389 8 29 14 12 17 500
361390 10 30 15 14 19 500
361391 12 32 17 17 22 400
361392 15 36 21 19 27 400
361393 18 40 23.5 24 32 400
361394 22 44 27.5 27 36 250
361395 28 47 30.5 36 41 250
361396 35 56 34.5 41 50 250
361397 42 63 40 50 60 250



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
361388SS Equal Tee DIN 2353 L 6mm £35.00 25% £26.25
361389SS Equal Tee DIN 2353 L 8mm £36.70 25% £27.53
361390SS Equal Tee DIN 2353 L 10mm £42.35 25% £31.76
361391SS Equal Tee DIN 2353 L 12mm £51.20 25% £38.40
361392SS Equal Tee DIN 2353 L 15mm £71.55 25% £53.66
361393SS Equal Tee DIN 2353 L 18mm £97.35 25% £73.01
361394SS Equal Tee DIN 2353 L 22mm £137.85 25% £103.39
361395SS Equal Tee DIN 2353 L 28mm £215.00 25% £161.25
361396SS Equal Tee DIN 2353 L 35mm £340.40 25% £255.30
361397SS Equal Tee DIN 2353 L 42mm £478.70 25% £359.03
