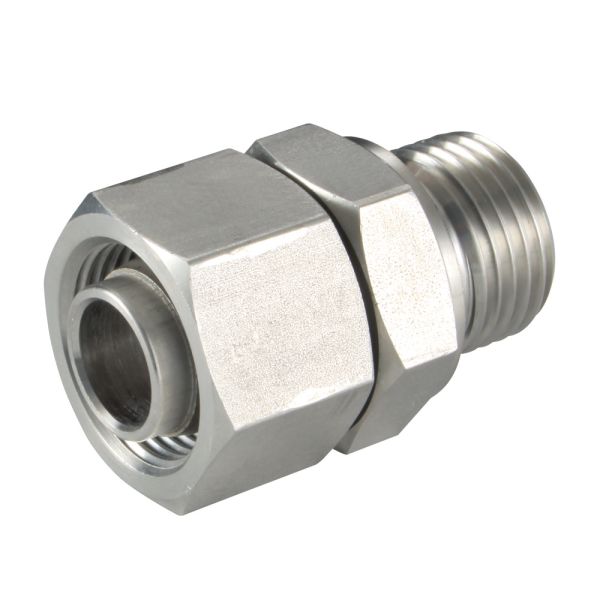

S Series BSPP Captive Seal
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: stainless steel - 316
- BSPP male thread
- Manufactured to DIN 2353
- Captive seal Viton
- S series (heavy)
| Product Code | Outer Diameter (mm) | Thread (inch) | L1 (mm) | L2 (mm) | i (mm) | SW1 (mm) | SW3 (mm) | Max. Pressure (bar) |
| 360936 | 6 | 1/8 | 32.5 | 19 | 8 | 14 | 17 | 630 |
| 360937 | 6 | 1/4 | 39.5 | 20.5 | 12 | 19 | 17 | 630 |
| 360938 | 8 | 1/4 | 41 | 20.5 | 12 | 19 | 19 | 630 |
| 360939 | 8 | 3/8 | 42.5 | 20.5 | 12 | 22 | 19 | 630 |
| 360940 | 10 | 1/4 | 39.5 | 20.5 | 12 | 19 | 22 | 630 |
| 360941 | 10 | 3/8 | 44 | 21 | 12 | 22 | 22 | 630 |
| 360942 | 10 | 1/2 | 47 | 21 | 14 | 27 | 22 | 630 |
| 360943 | 12 | 1/4 | 42 | 21.5 | 12 | 19 | 24 | 630 |
| 360944 | 12 | 3/8 | 45 | 22 | 12 | 22 | 24 | 630 |
| 360945 | 12 | 1/2 | 48.5 | 22.5 | 14 | 27 | 24 | 630 |
| 360946 | 14 | 1/2 | 51 | 24.5 | 14 | 27 | 27 | 630 |
| 360947 | 16 | 3/8 | 48.5 | 26 | 12 | 22 | 30 | 400 |
| 360948 | 16 | 1/2 | 51 | 26 | 14 | 27 | 30 | 400 |
| 360949 | 16 | 3/4 | 54.5 | 26 | 16 | 32 | 30 | 400 |
| 360950 | 20 | 1/2 | 56.5 | 29.5 | 14 | 27 | 36 | 400 |
| 360951 | 20 | 3/4 | 59 | 29 | 16 | 32 | 36 | 400 |
| 360952 | 25 | 3/4 | 63 | 33 | 16 | 32 | 46 | 400 |
| 360953 | 25 | 1 | 66 | 33 | 18 | 41 | 46 | 400 |
| 360954 | 30 | 1 1/4 | 71 | 34 | 20 | 50 | 50 | 400 |
| 360955 | 38 | 1 1/2 | 83.5 | 40 | 22 | 55 | 60 | 315 |
