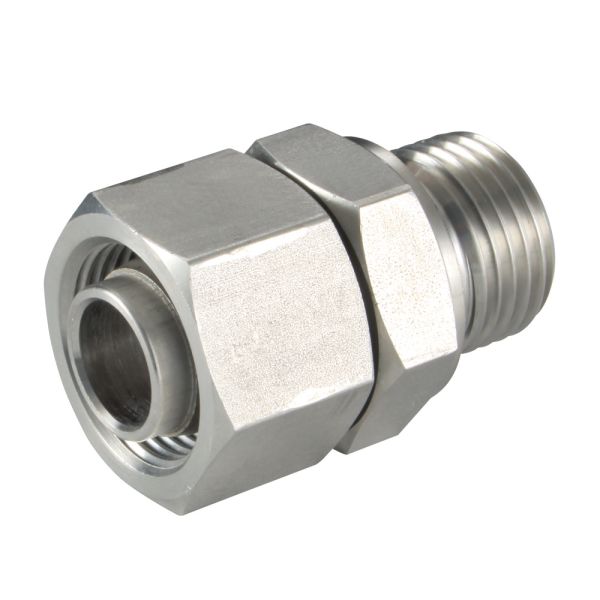

L Series Metric Parallel Captive Seal
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: stainless steel - 316
- Metric parallel male thread
- Manufactured to DIN 2353
- Captive seal Viton
- L series (light)
| Product Code | Outer Diameter (mm) | Thread (inch) | L1 (mm) | L2 (mm) | i (mm) | SW1 (mm) | SW3 (mm) | Max. Pressure (bar) |
| 360956 | 6 | M10 x 1 | 32.5 | 19 | 8 | 14 | 14 | 315 |
| 360957 | 8 | M12 x 1.5 | 38.5 | 19.5 | 12 | 17 | 17 | 315 |
| 360958 | 10 | M14 x 1.5 | 39.5 | 20.5 | 12 | 19 | 19 | 315 |
| 360960 | 15 | M18 x 1.5 | 43.5 | 23 | 12 | 24 | 27 | 315 |
| 360961 | 18 | M22 x 1.5 | 47 | 24 | 14 | 27 | 32 | 315 |
| 360962 | 22 | M26 x 1.5 | 50.5 | 24.5 | 16 | 32 | 36 | 160 |
| 360963 | 28 | M33 x 2 | 54 | 25.5 | 18 | 41 | 41 | 160 |
| 360964 | 35 | M42 x 2 | 62.5 | 60.5 | 20 | 50 | 50 | 160 |
| 360965 | 42 | M48 x 2 | 68.5 | 32.5 | 22 | 55 | 60 | 160 |
