S Series

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: stainless steel - 316
  • Manufactured to DIN 2353
  • BSPP male thread
  • S series (heavy)

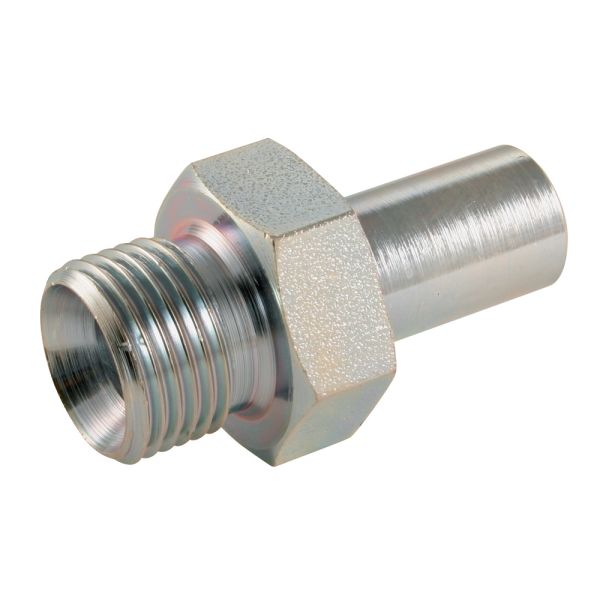

Standpipe Adaptor

Product Code Outside Diameter (mm) Thread (inch) L1 L2 i SW1 Pressure Rating (bar)
361732 6 1/4 32.5 19 8 14 630
361733 8 1/4 41 20.5 12 19 630
361734 10 3/8 39.5 20.5 12 19 630
361735 12 3/8 45 22 12 22 630
361736 14 1/2 46 23 14 27 630
361737 16 1/2 47 24 14 27 400
361738 20 3/4 50.5 24.5 16 32 400
361739 25 1 54 25.5 18 41 400
361740 30 1 1/4 63.5 32 20 50 400
361741 38 1 1/2 70 32 22 55 315



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
361732SS Standpipe Adaptor Male DIN 2353 S 1/4" x 6mm £33.30 25% £24.98
361733SS Standpipe Adaptor Male DIN 2353 S 1/4" x 8mm £34.28 25% £25.71
361734SS Standpipe Adaptor Male DIN 2353 S 3/8" x 10mm £41.03 25% £30.77
361735SS Standpipe Adaptor Male DIN 2353 S 3/8" x 12mm £42.60 25% £31.95
361736SS Standpipe Adaptor Male DIN 2353 S 1/2" x 14mm £51.08 25% £38.31
361737SS Standpipe Adaptor Male DIN 2353 S 1/2" x 16mm £78.30 25% £58.73
361738SS Standpipe Adaptor Male DIN 2353 S 3/4" x 20mm £112.58 25% £84.43
361739SS Standpipe Adaptor Male DIN 2353 S 1" x 25mm £166.58 25% £124.93
361740SS Standpipe Adaptor Male DIN 2353 S 1 1/4" x 30mm £240.83 25% £180.62
361741SS Standpipe Adaptor Male DIN 2353 S 1 1/2" x 38mm £331.28 25% £248.46
