L Series UNF O Ring Sealing

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: stainless steel - 316
  • UNF male threads
  • O-Ring sealing
  • Manufactured to DIN 2353
  • L series (light)

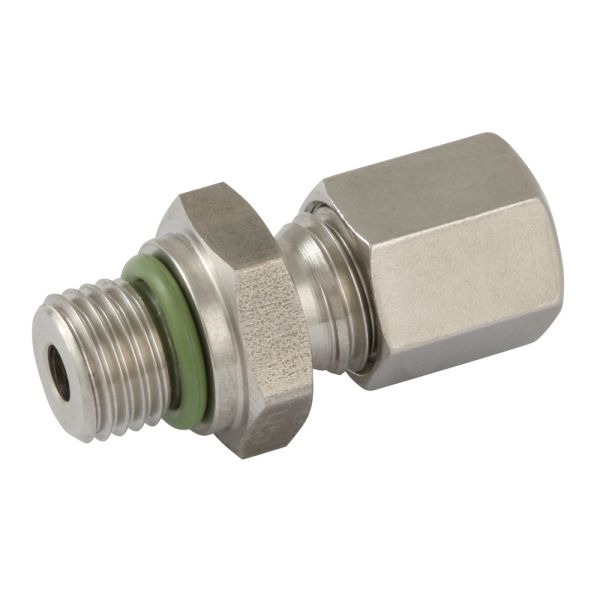

Stainless Steel Male Stud Coupling

Product Code Outer Diameter (mm) Thread (inch) L1 L2 i SW1 SW3 Pressure Rating (bar)
360790 6 0.4375 23.5 9 9.2 17 14 315
360791 6 0.5 - 10 9.2 17 14 315
360792 6 0.5625 - - 10 19 14 315
360793 8 0.4375 25 10 9.2 17 17 315
360794 8 0.5 25 10 9.2 17 17 315
360795 8 0.5625 25 10 10 19 17 315
360796 10 0.4375 26 11 9.2 17 19 315
360797 10 0.5 26 11 9.2 17 19 315
360798 10 0.5625 26 11 10 19 19 315
360799 10 0.75 30.5 13 11.2 24 19 315
360800 12 0.5625 26 12.5 10 19 22 315
360801 12 0.75 27 12.5 11.2 24 22 315
360802 12 0.875 27.5 13.5 12.7 27 22 315
360803 15 0.5625 29 14 10 24 27 315
360804 15 0.75 29 14 11.2 24 27 315
360805 15 0.875 29 14 12.7 27 27 315
360806 18 0.75 31 14.5 11.2 27 32 315
360807 18 0.875 31 14.5 12.7 27 32 315
360808 18 1.0625 31 14.5 15 32 32 315
360809 22 0.75 33 16.5 11.2 32 36 160
360810 22 0.875 33 16.5 12.7 32 36 160
360811 22 1.0625 33 16.5 15 32 36 160
360812 22 1.3125 33 16.5 15 32 36 315
360813 28 1.0625 34 17.5 15 41 41 160
360814 28 1.3125 34 17.5 15 41 41 160
360815 28 1.625 34 17.5 15 50 41 160
360816 35 1.3125 39 17.5 15 46 50 160
360817 35 1.625 39 17.5 15 46 50 160
360818 42 1.625 42 19 15 55 60 160
360819 42 1.875 42 19 15 5 60 160



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
360790SS Male Stud Coupling UNF L O Ring 6mm x 7/16" £32.60 25% £24.45
360791SS Male Stud Coupling UNF L O Ring 6mm x 1/2" £32.60 25% £24.45
360792SS Male Stud Coupling UNF L O Ring 6mm x 9/16" £32.60 25% £24.45
360793SS Male Stud Coupling UNF L O Ring 8mm x 7/16" £33.30 25% £24.98
360794SS Male Stud Coupling UNF L O Ring 8mm x 1/2" £33.30 25% £24.98
360795SS Male Stud Coupling UNF L O Ring 8mm x 9/16" £33.30 25% £24.98
360796SS Male Stud Coupling UNF L O Ring 10mm x 7/16" £34.10 25% £25.58
360797SS Male Stud Coupling UNF L O Ring 10mm x 1/2" £34.10 25% £25.58
360798SS Male Stud Coupling UNF L O Ring 10mm x 9/16" £34.10 25% £25.58
360799SS Male Stud Coupling UNF L O Ring 10mm x 3/4" £36.50 25% £27.38
360800SS Male Stud Coupling UNF L O Ring 12mm x 9/16" £34.10 25% £25.58
360801SS Male Stud Coupling UNF L O Ring 12mm x 3/4" £37.25 25% £27.94
360802SS Male Stud Coupling UNF L O Ring 12mm x 7/8" £38.30 25% £28.73
360803SS Male Stud Coupling UNF L O Ring 15mm x 9/16" £41.65 25% £31.24
360804SS Male Stud Coupling UNF L O Ring 15mm x 3/4" £39.00 25% £29.25
360805SS Male Stud Coupling UNF L O Ring 15mm x 7/8" £40.05 25% £30.04
360806SS Male Stud Coupling UNF L O Ring 18mm x 3/4" £46.60 25% £34.95
360807SS Male Stud Coupling UNF L O Ring 18mm x 7/8" £46.60 25% £34.95
360808SS Male Stud Coupling UNF L O Ring 18mm x 1 1/16" £65.15 25% £48.86
360809SS Male Stud Coupling UNF L O Ring 22mm x 3/4" £68.90 25% £51.68
360810SS Male Stud Coupling UNF L O Ring 22mm x 7/8" £68.90 25% £51.68
360811SS Male Stud Coupling UNF L O Ring 22mm x 1 1/16" £66.60 25% £49.95
360812SS Male Stud Coupling UNF L O Ring 22mm x 1 5/16" £93.50 25% £70.13
360813SS Male Stud Coupling UNF L O Ring 28mm x 1 1/16" £100.00 25% £75.00
360814SS Male Stud Coupling UNF L O Ring 28mm x 1 5/16" £98.70 25% £74.03
360815SS Male Stud Coupling UNF L O Ring 28mm x 1 5/8" £281.85 25% £211.39
360816SS Male Stud Coupling UNF L O Ring 35mm x 1 5/16" £220.90 25% £165.68
360817SS Male Stud Coupling UNF L O Ring 35mm x 1 5/8" £213.90 25% £160.43
360818SS Male Stud Coupling UNF L O Ring 42mm x 1 5/8" £288.25 25% £216.19
360819SS Male Stud Coupling UNF L O Ring 42mm x 1 7/8" £288.25 25% £216.19
