L Series Captive Seal Metric

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Info

Useful Information

Key Features / Tech Specs & Dimensions:

Material: stainless steel - 316 (body), Viton elastomer (sealing ring)
Metric male threads
Manufactured to DIN 2353
L series (light)

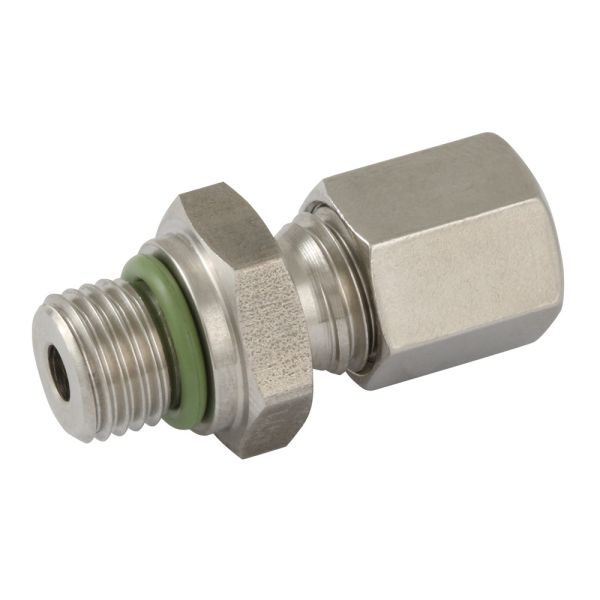

Male Stud Coupling L series Metric

Product Code	Outer Diameter (mm)	Thread (mm)	L1	L2	i	SW1	SW3	Max. Pressure
360468	6	M10 x 1	23	8.5	8	14	14	500
360469	6	M12 x 1.5	-	10	12	17	14	500
360470	6	M14 x 1.5	27	10	12	19	14	500
360471	8	M10 x 1	26	9.5	8	17	17	500
360472	8	M12 x 1.5	25	10	12	17	17	500
360473	8	M14 x 1.5	27	10	12	19	17	500
360474	8	M16 x 1.5	27.5	11.5	12	22	17	400
360475	8	M18 x 1.5	27.5	11.5	12	24	17	400
360476	10	M10 x 1	-	11	8	17	19	500
360477	10	M12 x 1.5	28.5	11.5	12	17	19	500
360478	10	M14 x 1.5	26	11	12	19	19	500
360479	10	M16 x 1.5	30	12.5	12	22	19	400
360480	10	M18 x 1.5	30	12.5	12	24	19	400
360481	10	M22 x 1.5	-	14	14	27	19	400
360482	12	M12 x 1.5	28	13	12	19	22	400
360483	12	M14 x 1.5	28	12.5	12	19	22	400
360484	12	M16 x 1.5	27	12.5	12	22	22	400
360485	12	M18 x 1.5	30	12.5	12	24	22	400
360486	12	M22 x 1.5	-	14	14	27	22	400
360489	15	M22 x 1.5	33	15	14	27	27	400
360490	18	M18 x 1.5	33	14	12	27	32	400
360491	18	M22 x 1.5	31	14.5	14	27	32	400
360492	18	M26 x 1.5	-	14.5	16	32	32	250
360493	22	M22 x 1.5	38	17.5	14	32	36	250
360494	22	M26 x 1.5	33	16.5	16	32	36	250
360495	28	M33 x 2	34	17.5	18	41	41	250
360496	35	M42 x 2	39	17.5	20	50	50	250
360497	42	M48 x 2	42	19	22	55	60	250
