L Series NPT

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: stainless steel - 316
  • Manufactured to DIN 2353
  • NPT female thread
  • L series (light)

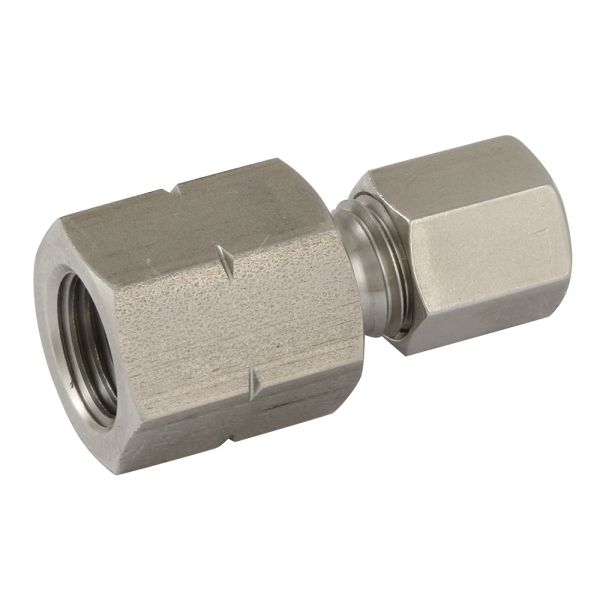

Gauge Coupling

Product Code Outside Diameter (mm) Thread (inch) L1 L2 i SW1 SW3 Pressure Rating (bar)
361781 6 1/4 38 23.5 16.4 19 14 315
361782 6 1/2 46 31 22.6 27 14 315
361783 8 1/4 38 23.5 16.4 19 17 315
361784 8 1/2 46 31 22.6 27 17 315
361785 10 1/4 39 24 16.4 19 19 315
361786 10 1/2 47 32 22.6 27 19 315
361787 12 1/4 - - 16.4 19 22 315
361788 12 1/2 47 32 22.6 27 22 315



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
361781SS Gauge Coupling DIN 2353 L NPT 1/4" x 6mm £20.65 25% £15.49
361782SS Gauge Coupling DIN 2353 L NPT 1/2" x 6mm £29.45 25% £22.09
361783SS Gauge Coupling DIN 2353 L NPT 1/4" x 8mm £21.40 25% £16.05
361784SS Gauge Coupling DIN 2353 L NPT 1/2" x 8mm £30.90 25% £23.18
361785SS Gauge Coupling DIN 2353 L NPT 1/4" x 10mm £22.90 25% £17.18
361786SS Gauge Coupling DIN 2353 L NPT 1/2" x 10mm £31.80 25% £23.85
361787SS Gauge Coupling DIN 2353 L NPT 1/4" x 12mm £24.15 25% £18.11
361788SS Gauge Coupling DIN 2353 L NPT 1/2" x 12mm £33.05 25% £24.79
