S Series Metric F Threaded

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: stainless steel - 316
  • Manufactured to DIN 2353
  • Metric female thread
  • S series (heavy)

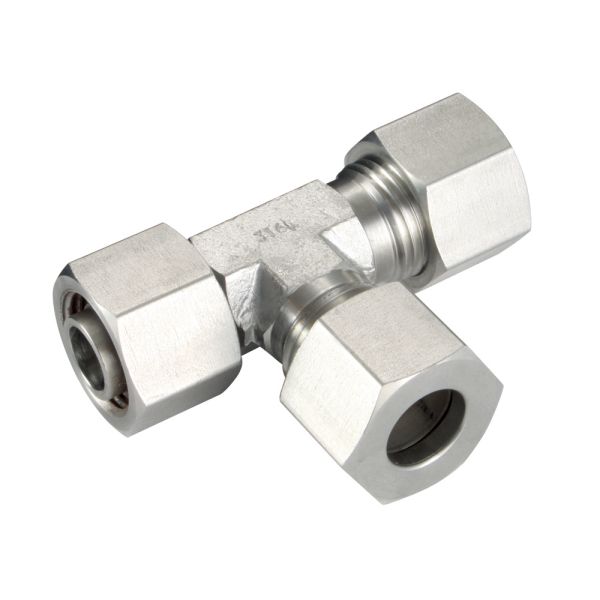

Adjustable Run Tee Metric Female

Product Code Outer Diameter (mm) Thread (mm) L1 (mm) L2 (mm) L5 (mm) SW2 (mm) SW3 (mm) Max. Pressure (bar)
361083 6 M14 x 1.5 31 16 27 12 17 630
361084 8 M16 x 1.5 32 17 27.5 14 19 630
361085 10 M18 x 1.5 34 17.5 30 17 22 630
361086 12 M20 x 1.5 38 21.5 31 17 24 630
361087 14 M22 x 1.5 40 22 35 19 27 630
361088 16 M24 x 1.5 43 24.5 36.5 24 30 400
361089 20 M30 x 2 48 26.5 44.5 27 36 400
361090 25 M36 x 2 54 30 50 36 46 400
361091 30 M42 x 2 62 35.5 55 41 50 400
361092 38 M52 x 2 72 41 63 50 60 250



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
361083SS Adj Run Tee Female Thread DIN 2353 S M14 x 1.5 x 6mm £50.50 25% £37.88
361084SS Adj Run Tee Female Thread DIN 2353 S M16 x 1.5 x 8mm £56.40 25% £42.30
361085SS Adj Run Tee Female Thread DIN 2353 S M18 x 1.5 x 10mm £72.45 25% £54.34
361086SS Adj Run Tee Female Thread DIN 2353 S M20 x 1.5 x 8mm £80.45 25% £60.34
361087SS Adj Run Tee Female Thread DIN 2353 S M22 x 1.5 x 14mm £93.30 25% £69.98
361088SS Adj Run Tee Female Thread DIN 2353 S M24 x 1.5 x 16mm £150.15 25% £112.61
361089SS Adj Run Tee Female Thread DIN 2353 S M30 x 2 x 22mm £182.55 25% £136.91
361090SS Adj Run Tee Female Thread DIN 2353 S M36 x 2 x 25mm £292.10 25% £219.08
361091SS Adj Run Tee Female Thread DIN 2353 S M42 x 2 x 30mm £336.60 25% £252.45
361092SS Adj Run Tee Female Thread DIN 2353 S M52 x 2 x 38mm £476.65 25% £357.49
