S Series Metric F Threaded

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: stainless steel - 316
  • Manufactured to DIN 2353
  • Metric female thread
  • S series (heavy)
  • Operating pressure up to 630 bar

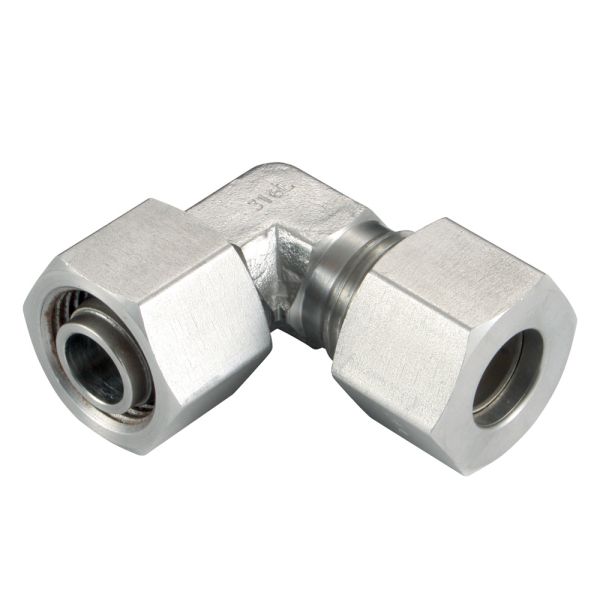

Adjustable Elbow Metric Female

Product Code Outer Diameter (mm) Thread G (inch) L1 (mm) L2 (mm) L5 (mm) SW2 (mm) SW3 (mm) Max. Pressure (bar)
361265 6 M14 x 1.5 31 16 27 12 17 630
361266 8 M16 x 1.5 32 17 27.5 14 19 630
361267 10 M18 x 1.5 34 17.5 30 17 22 630
361268 12 M20 x 1.5 38 21.5 31 17 24 630
361269 14 M22 x 1.5 40 22 35 19 27 630
361270 16 M24 x 1.5 43 24.5 36.5 24 30 400
361271 20 M30 x 2 48 26.5 44.5 27 36 400
361272 25 M36 x 2 54 30 50 36 46 400
361273 30 M42 x 2 62 35.5 55 41 50 400
361274 38 M52 x 2 72 41 63 50 60 250
