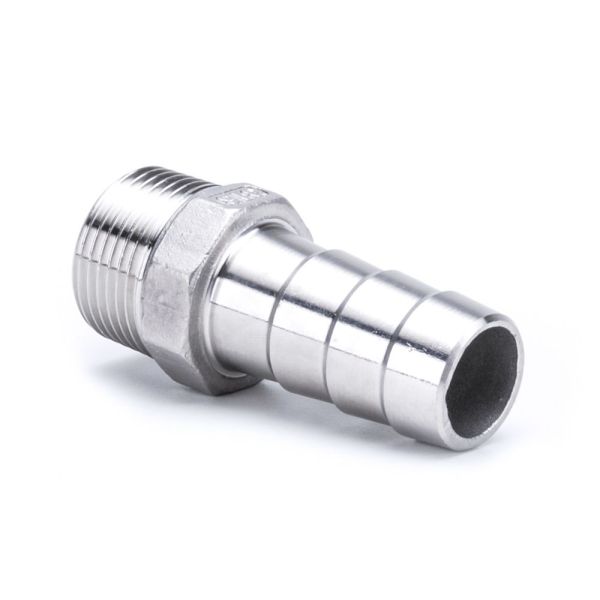

Hose Adaptor
Useful Information
Key Features / Tech Specs:
- Material: stainless steel - CF8M (316)
- Conforms to ISO 4144 standard
- Thread: ANSI B1.20.1 NPT
- Operating temperature range of -20°C to 220°C
- NPT is not compatible with BSP Threaded fittings
Technical Info:
| Nominal Diameter (inch) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (kg) |
| 1/4 | 42 | 9 | 7 | 23 | 12.8 | 0.021 |
| 3/8 | 47.8 | 10 | 7.5 | 25 | 15 | 0.035 |
| 1/2 | 60.5 | 15 | 8 | 35 | 17 | 0.06 |
| 3/4 | 70 | 20.5 | 10 | 42.5 | 18 | 0.104 |
| 1 | 82 | 27 | 12 | 52 | 19 | 0.175 |
| 1 1/4 | 82.9 | 34 | 12 | 51 | 20.5 | 0.231 |
| 1 1/2 | 90.4 | 40.5 | 13 | 57 | 21.5 | 0.311 |
| 2 | 108 | 52.3 | 15.5 | 69.5 | 25.5 | 0.512 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
