This Type DP stainless steel camlock dust plug is designed to cap off cam and groove couplings, preventing contamination when fittings are not in use. Made from 316 stainless steel, it offers outstanding corrosion resistance, making it suitable for harsh or hygienic environments. The camlock design allows for quick, tool-free fitting, protecting systems during storage, cleaning, or transport.
Key Features & Benefits
316 stainless steel provides excellent corrosion resistance and durability
Prevents ingress of dirt, dust, or debris into open couplings
Camlock design allows fast, tool-free installation and removal
Rated to a working pressure of 17 bar
Ideal for hygienic, chemical, and industrial system protection
SKU

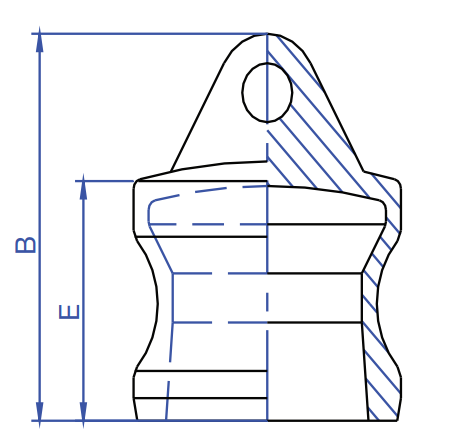

B (mm)
E (mm)
Pressure (psi)
358453
25
34
250
358454
25
40
250
358455
27
45
250
358456
38
55
250
358457
45
62
250
358458
47
62
250
358459
43
62
150
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
