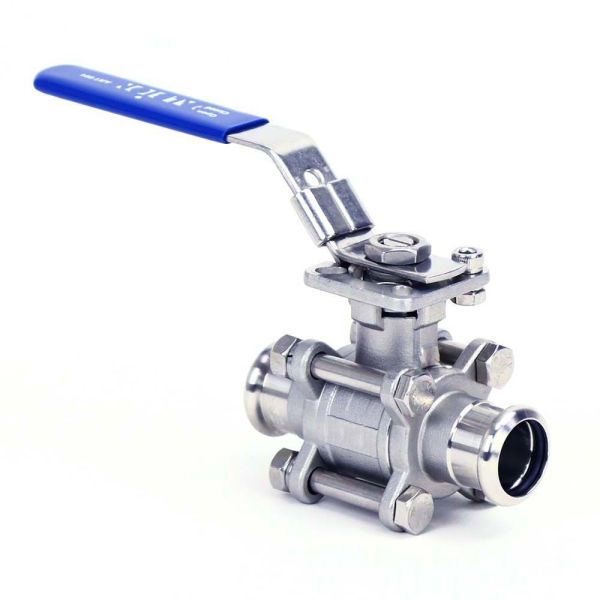

Stainless Steel 3 Piece Ball Valve Press Fit

This stainless steel 3 piece press fit ball valve is designed for fast, secure installation into compatible M profile press fit pipework systems. The press fit connection removes the need for hot works, threading or welding, helping to reduce installation time while maintaining a strong, reliable joint. The 3 piece body construction makes the valve well suited to demanding commercial and industrial pipework where long-term serviceability is important. Its full bore design helps minimise flow restriction through the valve, making it suitable for applications where efficient fluid movement and dependable shut-off are required.

Manufactured with a stainless steel body, ball and stem, and RPTFE seats, the valve offers excellent strength, clean operation and resistance to demanding working conditions. The locking device provides added safety and control, while the ISO5211 direct mounting pad allows compatible actuators to be fitted without the need for additional mounting brackets. With pressure ratings up to 24 bar depending on size, and an operating temperature range of -20°C to +120°C, this valve is a robust option for industrial fluid control, process pipework, plant rooms and press fit stainless steel installations.
