Durapipe Corzan Stub Flange Gasket FPM
Technical Specification
- Product type: Stub flange gasket
- Seal material: FPM
- Manufacturer: Durapipe
- Compatibility: CPVC stub flanges and backing rings
- Size range: 20mm to 160mm
- Application: Flanged joint sealing
- Chemical resistance: Excellent
Description
The Durapipe FPM Stub Flange Gasket is designed to create a secure, leak-free seal within flanged Corzan CPVC pipework systems. Installed between the stub flange face and the backing ring assembly, it ensures consistent sealing performance even in demanding industrial environments.
Manufactured from high-quality FPM, this gasket offers excellent resistance to aggressive chemicals, solvents and elevated temperatures, making it the preferred choice for corrosive process applications where EPDM is not suitable. Its resilient construction allows it to maintain sealing integrity under pressure and thermal variation.
Designed specifically to match Durapipe CPVC stub flanges, the gasket integrates seamlessly into PN and ANSI flange assemblies when used with the appropriate backing ring and bolting arrangement.
Key Features & Benefits
- FPM material: Excellent resistance to aggressive chemicals and solvents
- Reliable sealing: Helps maintain leak-free flange joints
- Wide size range: Available from 20mm to 160mm
- System matched: Designed for use with Durapipe CPVC stub flanges
- Industrial performance: Suitable for demanding and corrosive environments
- Easy installation: Fits directly into standard flanged assemblies

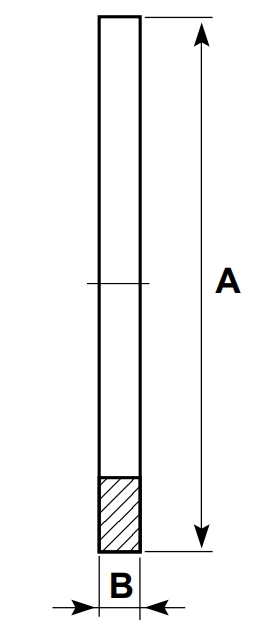

| SKU | Size (mm) | A (mm) | B (mm) | gms |
| 350761 | 20 | 32 | 2 | 2 |
| 350762 | 25 | 38.5 | 2 | 3 |
| 350763 | 32 | 44 | 2 | 4 |
| 350764 | 40 | 59 | 2 | 4 |
| 350765 | 50 | 71 | 2 | 5 |
| 350766 | 63 | 88 | 2 | 10 |
| 350767 | 75 | 104 | 2 | 20 |
| 350768 | 90 | 123 | 2 | 30 |
| 350769 | 110 | 148 | 3 | 40 |
| 350770 | 160 | 211 | 3 | 60 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
