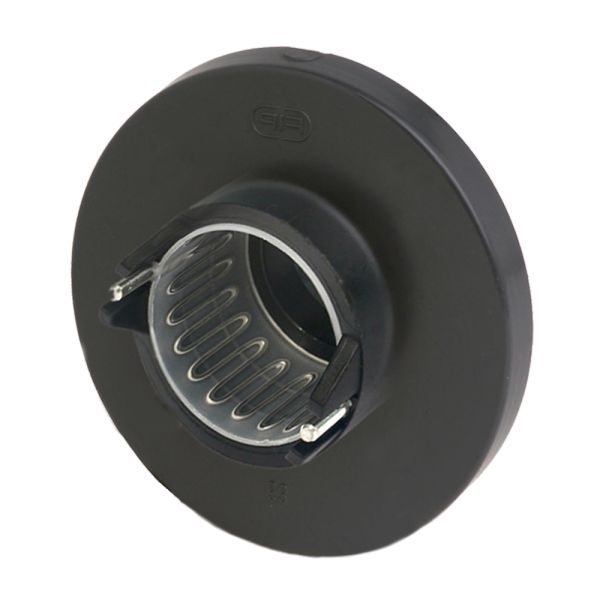

Vulcathene Enfusion Undrilled Flange
Useful Information
Enfusion Flanges require Nitrile Gaskets and M20 Bolts.
Enfusion Fittings require the Enfusion Control Unit to bond fittings to pipe.
| Manufacturer | Durapipe |
| Material | Black co-polymer PP |
| Standards | Manufactured to ISO 9001 |
| Approvals | BBA 24/7091 |
| Operating Temperature | -20°C to 100°C |

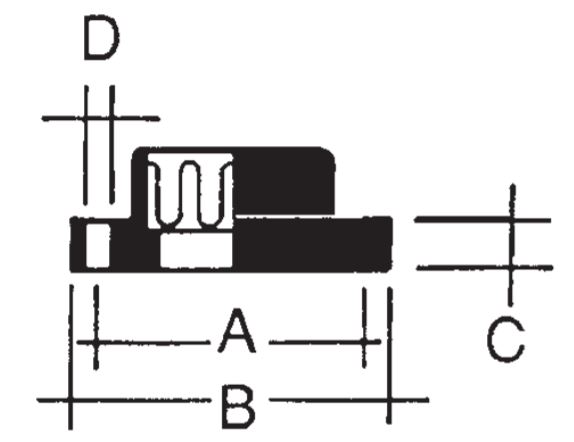

| Product Code | Nom. Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | gms |
| 377073 | 38 | 98 | 127 | 16 | 14 | 280 |
| 377074 | 51 | 114 | 150 | 18 | 17 | 310 |
| 377075 | 76 | 146 | 189 | 23 | 17 | 600 |
| 377076 | 102 | 178 | 228 | 28 | 17 | 780 |
| 377077 | 152 | 235 | 278 | 25 | 17 | 1768 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
