Socket

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polypropylene
  • Socket threaded fitting
  • Pressure rated to 6 bar
  • Manufactured to DIN 16962
  • Available in sizes from 1/2" to 4"

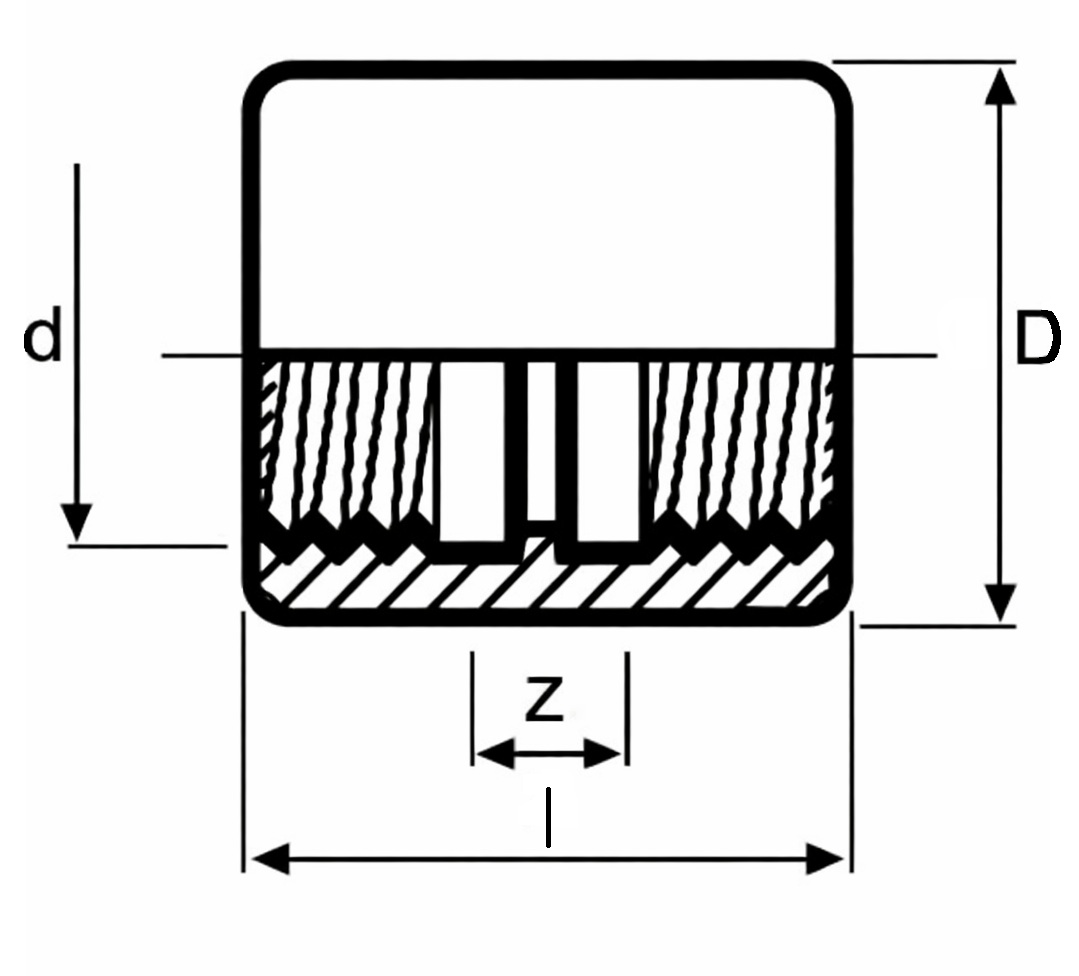

PPh socket threaded diagram

Product Code d (inch D (mm) I (mm) Z (mm) Pressure Rating (bar)
355838 ½ 27 38 4 6
355839 ¾ 34 42 4 6
355840 1 48 50 4 6
355841 1 ½ 61 53 3 6
355842 2 77 61 3 6
355843 3 110 81 5 6
355844 4 134 96 6 6



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These threaded socket pph fittings allow you to join together two pieces of PPh pipe of the same diameter.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
355838PP Socket Threaded 1/2" £6.52 20% £5.22
355839PP Socket Threaded 3/4" £8.43 20% £6.74
355840PP Socket Threaded 1" £9.37 20% £7.50
355841PP Socket Threaded 1 1/2" £13.76 20% £11.01
355842PP Socket Threaded 2" £19.24 20% £15.39
355843PP Socket Threaded 3" £49.36 20% £39.49
355844PP Socket Threaded 4" £110.33 20% £88.26
