Function: Reduction between differing pipe diameters
Outdoor use: Not recommended
Description
The PP Natural Reducing Bush is designed to provide a secure and efficient transition between different pipe diameters within inch polypropylene pipe systems. Manufactured from high-quality polypropylene block copolymer, it offers excellent toughness, chemical resistance, and long-term dimensional stability in demanding process environments.
Produced in accordance with BS 4991: 1974 Series 1, this reducing bush is pressure rated to 10 bar and installed using socket fusion techniques to create a strong, homogeneous joint that maintains system integrity and flow performance.
Key Features & Benefits
Reliable size reduction: Connects two PP pipes of differing diameters with minimal disruption to flow
10 bar pressure rated: Suitable forTopics industrial and process applications
PP-B construction: High impact resistance with excellent chemical and abrasion resistance
Smooth internal bore: Reduces turbulence and pressure loss at the transition point
Corrosion free: Will not rust, pit, or degrade over time
Lightweight and easy to install: Simplifies handling and alignment during installation
SKU

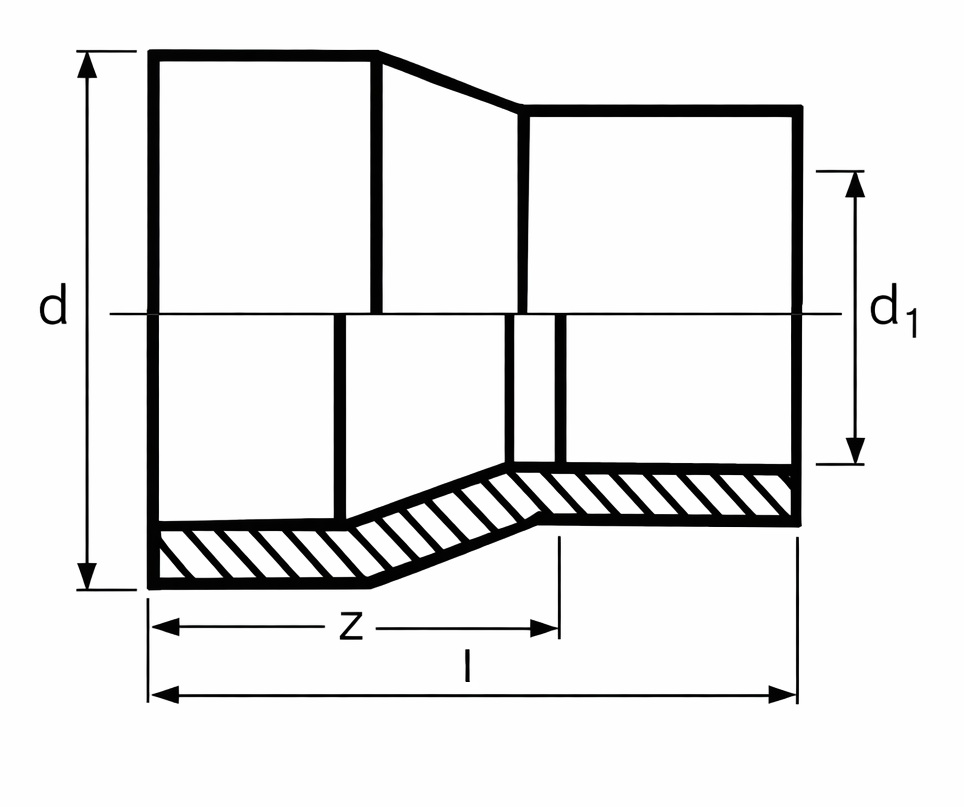

Nominal Bore / d x d1 (inch)
I (mm)
z (mm)
Weight (g)
392757
3/4 x 1/2
38
23
10
392758
1 x 1/2
46
29
14
392759
1 x 3/4
46
26
16
392760
1 1/4 x 1
48
26
20
392761
1 1/2 x 1
57
33
34
392762
1 1/2 x 1 1/4
51
28
54
392763
2 x 1
57
35
54
392764
2 x 1 1/4
64
39
56
392765
2 x 1 1/2
56
32
40
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
