The PP Natural Full Face Flange provides a direct, full-face flanged connection for inch polypropylene pipe systems, offering excellent load distribution across the entire flange face. Manufactured from natural polypropylene block copolymer, this fitting delivers a strong, chemically resistant joint ideal for industrial applications where reliability and cleanliness are essential.
Produced to BS 4991: 1974 Series 1, the full face flange is rated to 10 bar and is commonly used where a rigid, bolted connection is required between two matching PP components or to compatible flanged equipment.
Key Features & Benefits
Full face design: Even gasket compression and improved sealing performance
10 bar pressure rating: Suitable for demanding process pipework
Natural PP-B material: High chemical resistance with excellent impact strength
Smooth internal bore: Helps minimise pressure loss and turbulence
Corrosion free: Will not rust, pit, or degrade in aggressive environments
Lightweight construction: Easier handling and installation than metal flanges

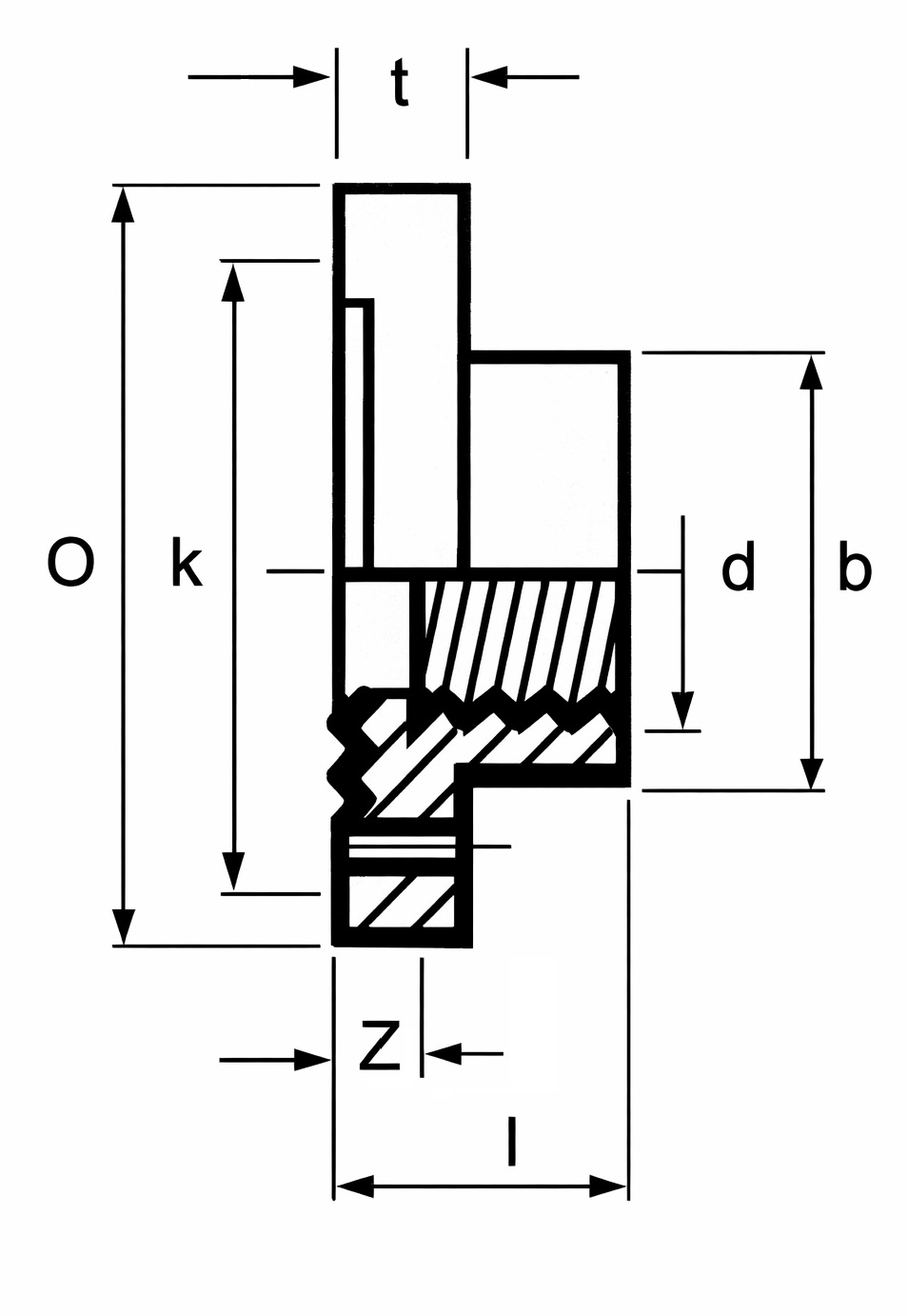

SKU
Nominal Bore (inch)
b (mm)
I (mm)
t (mm)
O (mm)
z (mm)
Weight (g)
392739
1/2
27
19
12
95
2
68
392740
3/4
33
22
12
105
2
81
392741
1
41
24
12
115
1
103
392742
1 1/4
50
26
12
136
3
109
392743
1 1/2
61
28
14
149
3
157
392744
2
76
32
18
160
3
264
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
