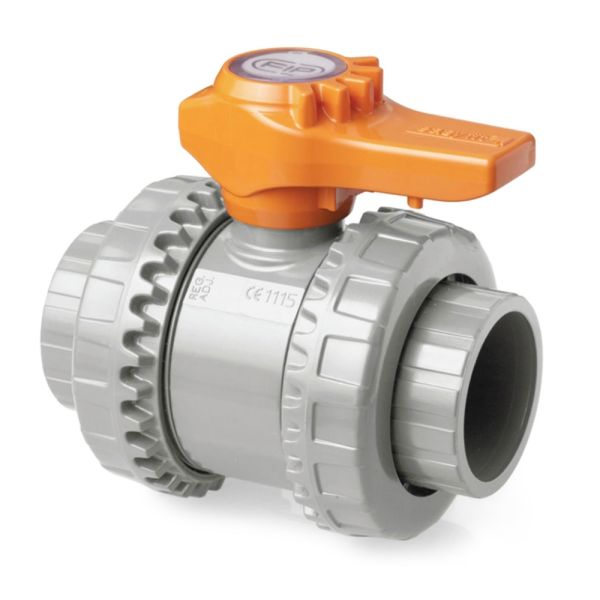

VXE DU Ball Valve EPDM
Technical Specification
- Product type: Double union 2-way ball valve
- Material: Chlorinated polyvinyl chloride (CPVC)
- Seal material: EPDM
- Valve design: True union, Easyfit system
- Manufacturer: Durapipe
- End connections: Female solvent weld sockets (solvent cement and cleaner required)
- Maximum working pressure: 16 bar at 20°C
- Size range: 16mm to 63mm
- Installation standard: EN 1452 short series dimensions
- System compatibility: Corzan CPVC pipe and fittings
Description
The VXE Easyfit double union ball valve is designed for reliable isolation and flow control within Corzan CPVC pipework systems handling hot, corrosive and aggressive fluids. Its true union construction allows the valve body to be removed from the pipeline without disturbing the surrounding pipework, making servicing and seal replacement straightforward.
Manufactured from high-performance CPVC and fitted with EPDM seals, the valve delivers excellent chemical resistance across a wide range of industrial media, including acids, alkalis, effluent and demineralised water. A threaded seat carrier improves sealing performance under pressure, helping to maintain tight shut-off even in demanding conditions.
The patented Easyfit system uses a multifunctional ergonomic handle that not only operates the valve, but also assists with tightening and loosening the union nuts and adjusting the ball seats. This makes the valve particularly well suited to installations with restricted access, where conventional tools are difficult to use.
Key Features & Benefits
- True double union design: Allows valve removal and maintenance without cutting the pipework
- EPDM seals: Reliable sealing for corrosive and industrial fluids
- Easyfit multifunctional handle: Assists with union nut tightening and seat adjustment
- High pressure capability: Rated to 16 bar at 20°C
- Excellent chemical resistance: Suitable for acids, alkalis and industrial effluent
- Compact installation: Short face-to-face dimensions for tight spaces
- Leak-free isolation: Downstream pipework can be disconnected with the valve closed
- System matched: Fully compatible with Corzan CPVC pipes and fittings

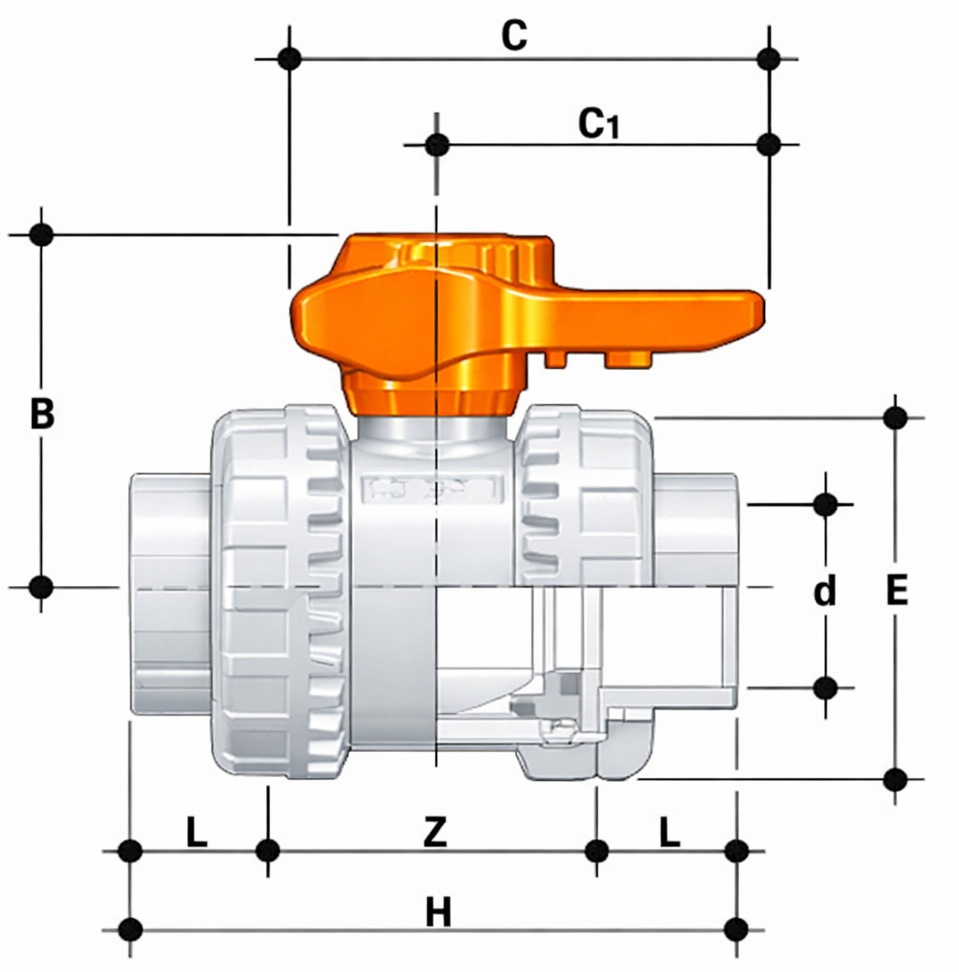

| Product Code | d (mm) | DN (mm) | L (mm) | Z (mm) | H (mm) | E (mm) | B (mm) | C (mm) | C1 (mm) | Pressure Rating (bar) |
| 354788 | 16 | 10 | 14 | 54 | 82 | 54 | 49 | 64 | 20 | 16 |
| 354789 | 20 | 15 | 16 | 50 | 82 | 54 | 49 | 64 | 20 | 16 |
| 354790 | 25 | 20 | 19 | 53 | 91 | 63 | 62 | 78 | 23 | 16 |
| 354791 | 32 | 25 | 22 | 59 | 103 | 72 | 71 | 87 | 27 | 16 |
| 354792 | 40 | 32 | 26 | 68 | 120 | 85 | 82 | 102 | 30 | 16 |
| 354793 | 50 | 40 | 31 | 77 | 139 | 100 | 92 | 109 | 33 | 16 |
| 354794 | 63 | 50 | 38 | 98 | 174 | 118 | 110 | 133 | 39 | 16 |
