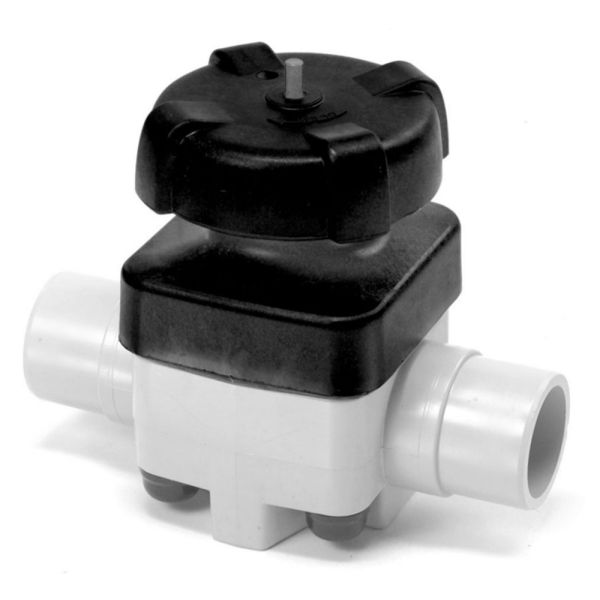

VM Diaphragm FPM Spig Male

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: chlorinated polyvinyl chloride
  • Seal material: fpm
  • VM diaphragm valve with male ends
  • Maximum working pressure: 10 bar at 20°C
  • Available in sizes from 75mm to 110mm

dp pvcc vm diaphragm valve union end male plain diaphragm

Product Code d (mm) DN (mm) B (mm) B1 (mm) H(mm) h (mm) H1 (mm) I (mm) L (mm) Z (mm) Pressure Rating (bar)
354785 75 65 225 55 284 23 200 100 M12 44 10
354786 90 80 225 55 300 23 200 100 M12 51 10
354787 110 100 295 69 300 23 200 120 M12 61 10


IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

Ideal for use with liquids and gaseous fluids, and also suitable for use in industrial and general purpose applications to transport demineralised water, acids, alkalis, industrial waste treatment, chemical processing, soaps, paper, pulps and effluent.

It is designed to allow easy internal cleaning and replacing of the sealing diaphragm.


If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
354786DP PVCc VM Diaphragm Valve FPM Spigot Plain 90mm £1,264.69 30% £885.28
354787DP PVCc VM Diaphragm Valve FPM Spigot Plain 110mm £1,716.74 30% £1,201.72
