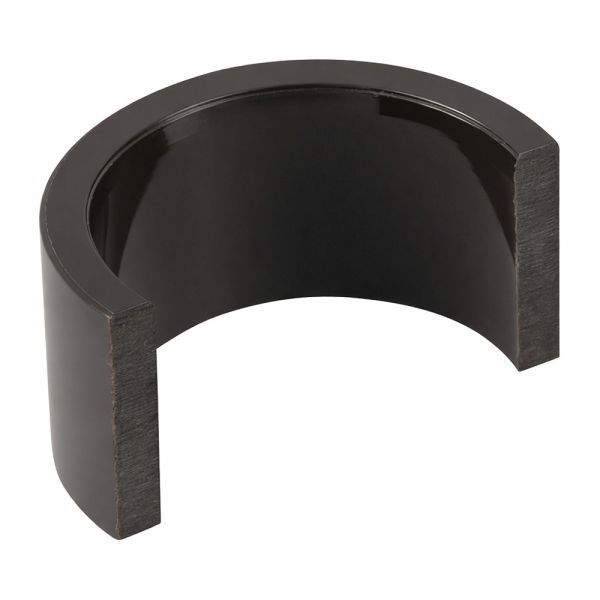

Durapipe HTA Anchor Point
Useful Information
Key Features / Tech Specs:
- Manufactured by Durapipe
- Material: chlorinated polyvinyl chloride (CPVC)
- For use with hot and cold water.
- Temperature Range: 5°C - 90°C
- Pressure Rating: Up to 25 bar
Working Pressures & Temperatures
| (PN25) 70°C / 10 bar 60°C / 6 bar | (PN16) 70°C / 6 bar 60°C / 4 bar | |
| Temperature °C | Pressure (bar) | Pressure (bar) |
| 5 | 25 | 16 |
| 20 | 25 | 16 |
| 40 | 20 | 12 |
| 60 | 13 | 8 |
| 70 | 10 | 6 |
| 80 | 6 | 4 |
| 90 | 4 | 2 |
Useful Info:
HTA is suitable for the transportation of drinking water.
Its smooth bore prevents limescale build up and is corrosion free.
Lightweight and easy to install.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
